(75.120.69) - THROTTLE VALVE PLUMBING

Запчасти Case IH 3230 (75.120.69) - THROTTLE VALVE PLUMBING (75) - SOIL PREPARATION

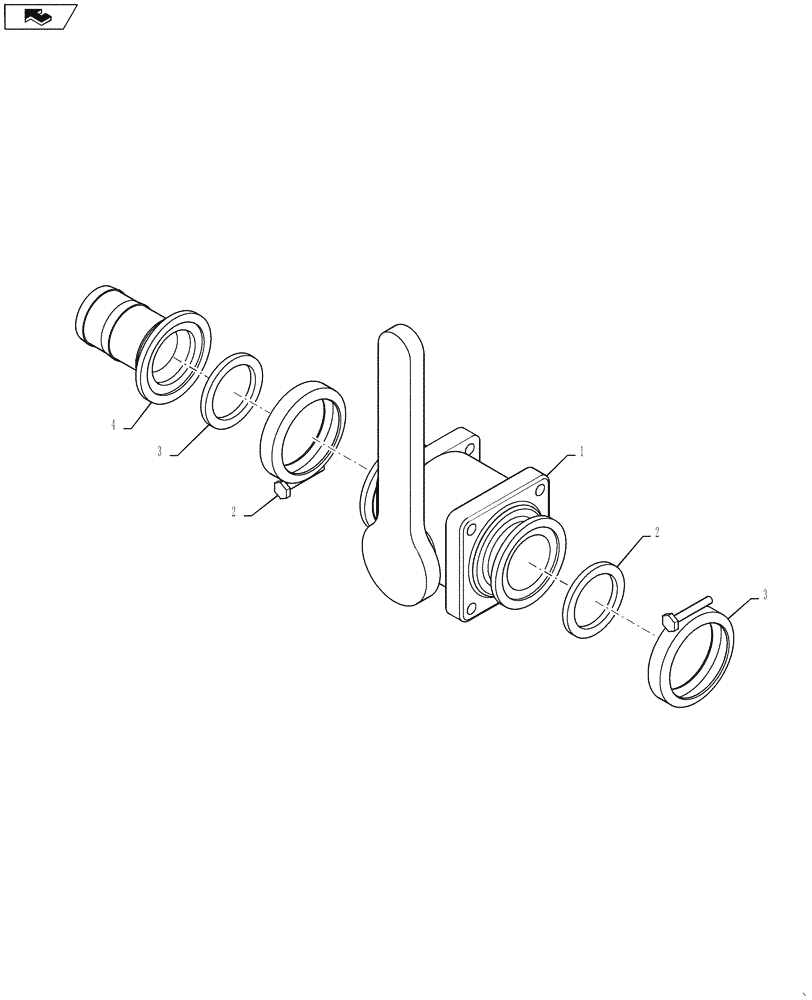

Схема запчастей Case IH 3230 - (75.120.69) - THROTTLE VALVE PLUMBING (75) - SOIL PREPARATION
3
3
1
4
home
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87268158

VALVE

2" Full Port Manifold, Throttle

1шт.

2

BN313773

CLAMP,2" Full Port

2" Flange

2шт.

3

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

2шт.

4

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

2" Full Flange X 2" Hose Barb, Poly

1шт.
