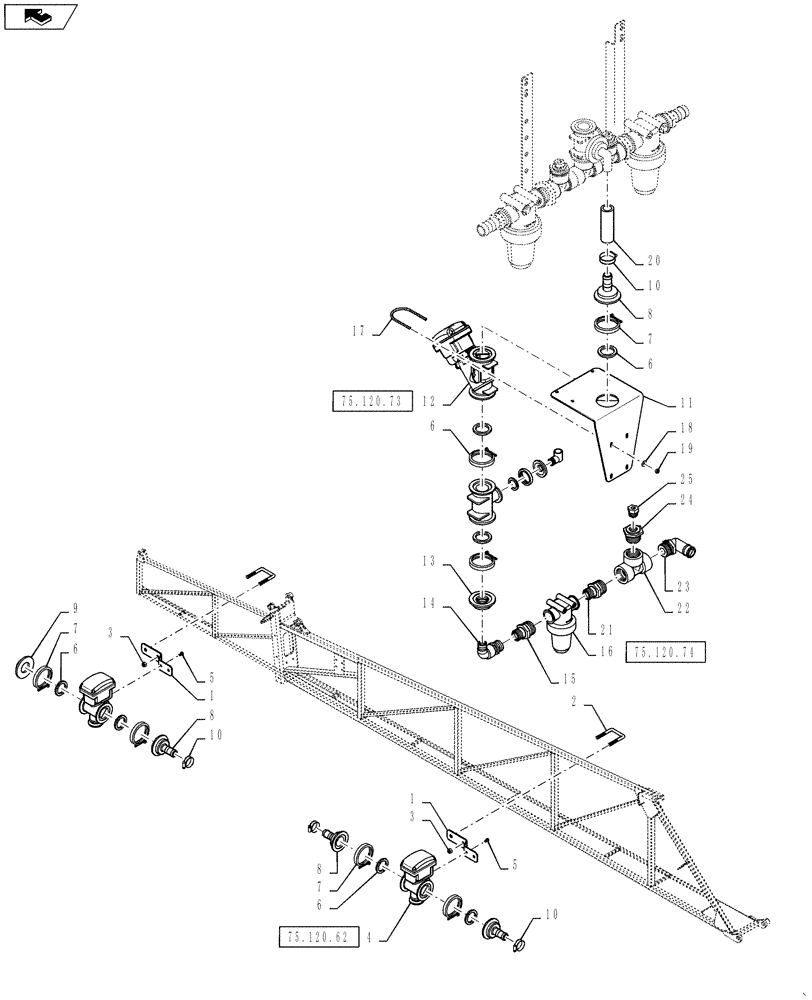

Запчасти Case IH 3230 (75.120.61[02]) - BOOM PLUMBING, 5 SECTION, SN YBT031115 AND AFTER (75) - SOIL PREPARATION

1

87265462

MOUNTING PARTS

RAVEN VALVE

4шт.

2

BN319919

U-BOLT

SQ BND 2.06 IDX3/8

4шт.

3

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

4

87632830

SHUT-OFF VALVE

Electric Plunger, 2.2" Flange x 1" Flange, 3/4" Full Port, Poly

4шт.

See Figure 75.120.62

1шт.

5

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

8шт.

6

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

11шт.

7

BN303199

CLAMP,2" Flange

2" STD FLG

11шт.

8

BN317966

FLANGE,2" Flange x 1" Hose Barb, Poly

2" Flange x 1" Hose Barb, Poly

7шт.

9

BN304317

PLUG,2" Flange, Poly

2" Manifold Flange

2шт.

10

BN320156

HOSE CLAMP

#24, Stainless Steel

7шт.

11

84224923

MOUNT

CS, VALVE

1шт.

12

87624339

SHUT-OFF VALVE

"Y" Style, Plunger, 2" Flange Ports

1шт.

See Fig 75.120.73 For Service Parts Breakdown

1шт.

13

344407A1

PLUG,2" Flange Plug with 3/4" FPT

2" Flange x 3/4" NPT, Poly

1шт.

14

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

3/4" MPT x 3/4" FPT, Poly

1шт.

15

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

1" X 3/4" POLY

1шт.

16

BN320072

FILTER STRAINER

1" NPT 50M POLY

1шт.

See Fig 75.120.74 For Service Parts Breakdown

1шт.

17

BN303201

U-BOLT

BOLT "U" 1/4 X 2.38R X 3.75

2шт.

18

BN50138

WASHER,1/4", SS

4шт.

19

BN55359

LOCK NUT,1/4"-20, SS

4шт.

20

BN53479

HOSE,1.00" ID BULK

EPDM Discharge

73шт.

21

BN73656

NIPPLE,1-1/4" Male NPT x 1" Male NPT, Poly

1-1/4" NPT x 1" NPT, Poly

1шт.

22

BN73662

TEE

1-1/4", Poly

1шт.

23

BN73663

ELBOW,90 Degree Elbow, 1-1/4" Male NPT x 1-1/4" Hose Barb, Poly

1-1/4" NPT x 1-1/4" Hose Barb, 90°, Poly

1шт.

24

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

Reducer, 1-1/4" MPT x 3/4" FPT, Poly

1шт.

25

BN73550

BUSHING

Reducer, 3/4" MPT x 1/4" FPT, Poly

1шт.
