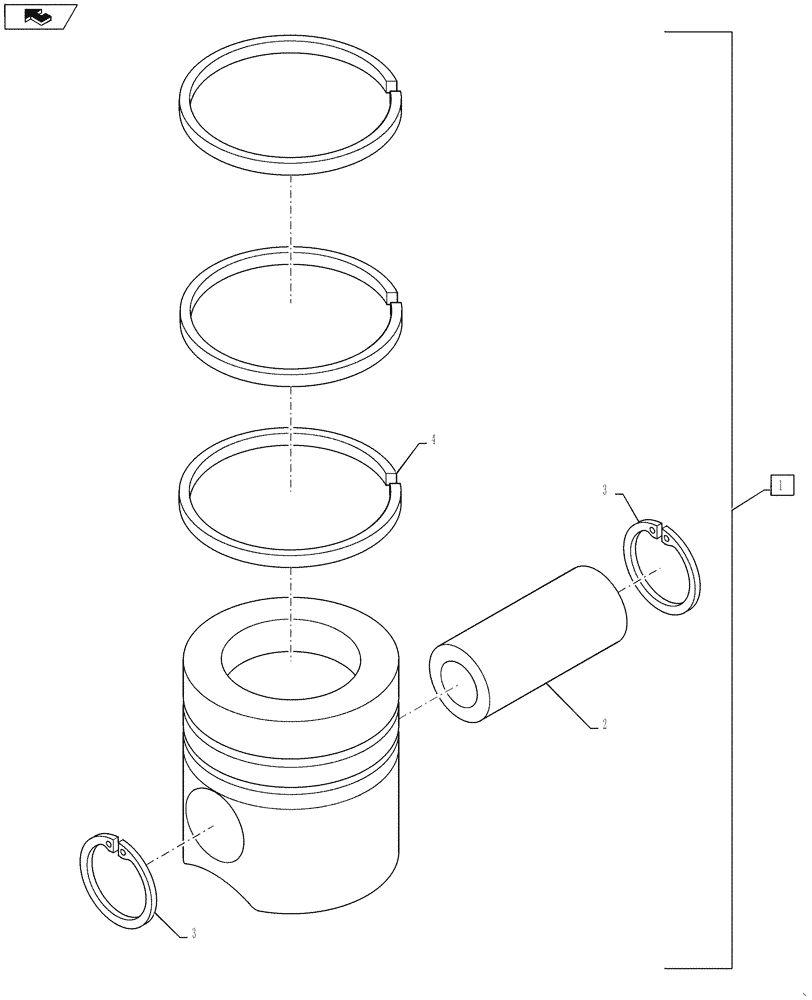

Запчасти Case IH 3230 (10.105.02) - PISTONS (10) - ENGINE

1

8094846

PISTON ASSY

6шт.

Includes Refs. 1 - 4

1шт.

1

8094848

PISTON ASSY +0.4

6шт.

2

4892712

PISTON PIN,38mm OD x 82mm L

6шт.

3

504093651

LOCKING RING

12шт.

4

8094845

PISTON RINGS KIT

Standard

6шт.

2

NSS

NOT SOLD SEPARAT

PISTON

6шт.

3

NSS

NOT SOLD SEPARAT

PIN, PISTON

1шт.

4

NSS

NOT SOLD SEPARAT

RING, LOCKING

2шт.

5

NSS

NOT SOLD SEPARAT

RING, LOCKING

2шт.

6

NSS

NOT SOLD SEPARAT

RING, PISTON, SEALING

1шт.

7

NSS

NOT SOLD SEPARAT

RING, PISTON

1шт.

8

NSS

NOT SOLD SEPARAT

RING, OIL SCRAPER

1шт.

9

87616297

PISTON & RINGS KIT

Piston, Pin, Retainer, & Ring, Standard

1шт.

9

87582046

PISTON & RINGS KIT

Piston, Pin, Retainer, & Ring, Oversize 0.4 mm

1шт.

9

87582047

PISTON & RINGS KIT

Piston, Pin, Retainer, & Ring, Oversize 0.8 mm

1шт.

9

87582179

PISTON RINGS KIT

Standard

1шт.

9

87582180

PISTON RINGS KIT

Oversize 0.4 mm

1шт.

9

87582181

PISTON RINGS KIT

Oversize 0.8 mm

1шт.
