(75.120.60) - BOOM VALVE PLUMBING, OUTER, 6 SECTION, LO-FLOW

Запчасти Case IH 3230 (75.120.60) - BOOM VALVE PLUMBING, OUTER, 6 SECTION, LO-FLOW (75) - SOIL PREPARATION

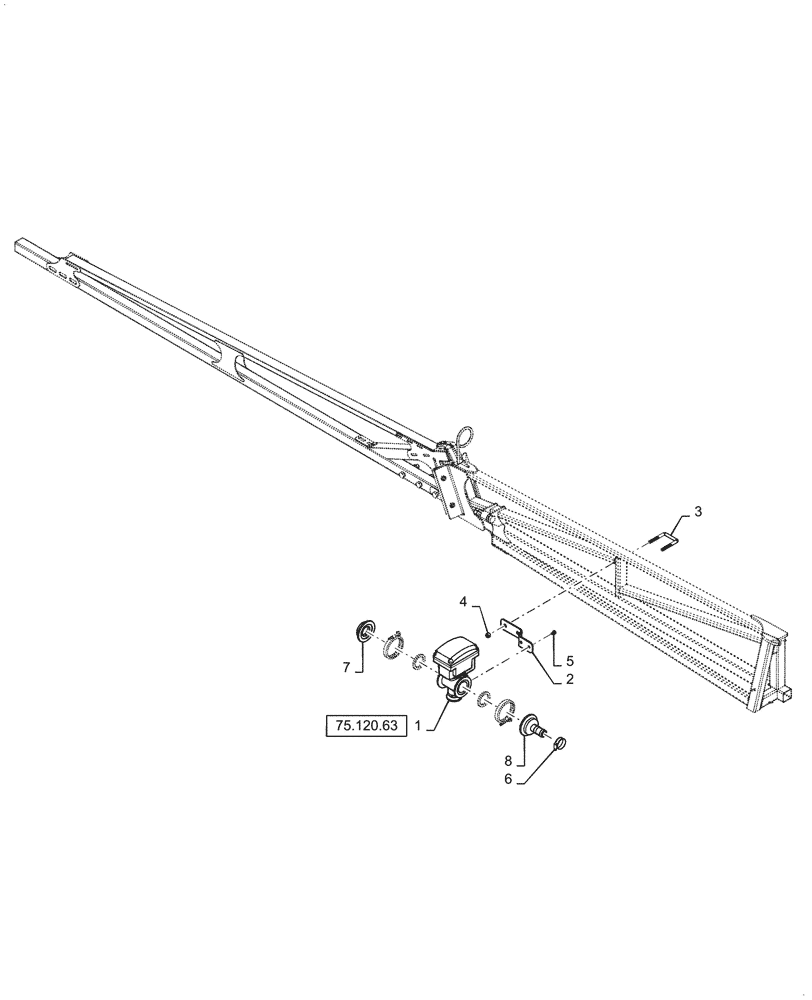

Схема запчастей Case IH 3230 - (75.120.60) - BOOM VALVE PLUMBING, OUTER, 6 SECTION, LO-FLOW (75) - SOIL PREPARATION
75.120.63
5
7
8
3
6
4
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87268840

VALVE

Manifold-Boom

1шт.

Refer to 75.120.63

1шт.

2

87265462

MOUNTING PARTS

RAVEN VALVE

1шт.

3

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

1шт.

4

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

5

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

6

BN75990

HOSE CLAMP

#16, Stainless Steel

1шт.

7

86984085

PLUG,2" Flange Plug

2" Manifold

1шт.

8

BN317966

FLANGE,2" Flange x 1" Hose Barb, Poly

2" Flange x 1" Hose Barb, Poly

1шт.
