(75.120.59) - BOOM VALVE PLUMBING, MID, 6 SECTION, LO-FLOW

Запчасти Case IH 3230 (75.120.59) - BOOM VALVE PLUMBING, MID, 6 SECTION, LO-FLOW (75) - SOIL PREPARATION

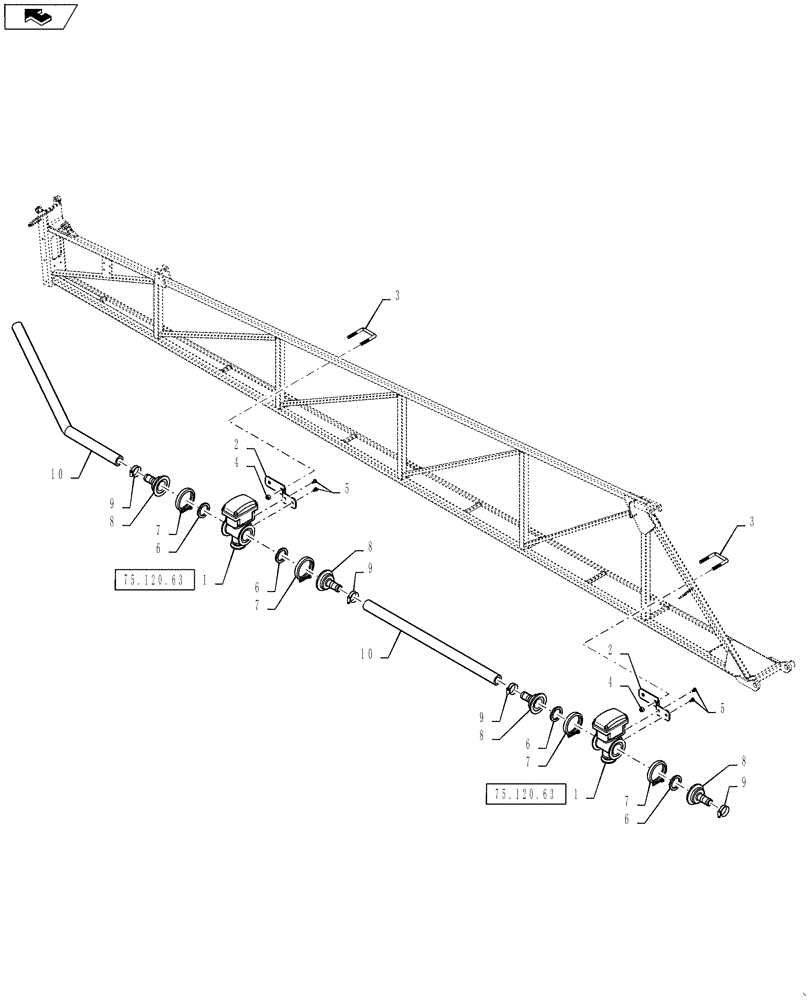

Схема запчастей Case IH 3230 - (75.120.59) - BOOM VALVE PLUMBING, MID, 6 SECTION, LO-FLOW (75) - SOIL PREPARATION
1
6
9
75.120.63
75.120.63
3
10
5
5
7
2
2
7
7
4
8
7
8
10
9
3
9
8
1
4
home
6
6
8
9
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87268840

VALVE

Manifold-Boom

2шт.

2

87265462

MOUNTING PARTS

RAVEN VALVE

2шт.

3

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

2шт.

4

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

5

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

4шт.

6

BN75990

HOSE CLAMP

#16, Stainless Steel

4шт.

7

BN324925

HOSE,1.00" ID x 152.00"

EPDM

2шт.

8

BN317966

FLANGE,2" Flange x 1" Hose Barb, Poly

2" Flange x 1" Hose Barb, Poly

4шт.

Выбрано товаров: 8
