(75.120.48) - MANIFOLD, CENTER SECTION, 5 SECTION

Запчасти Case IH 3230 (75.120.48) - MANIFOLD, CENTER SECTION, 5 SECTION (75) - SOIL PREPARATION

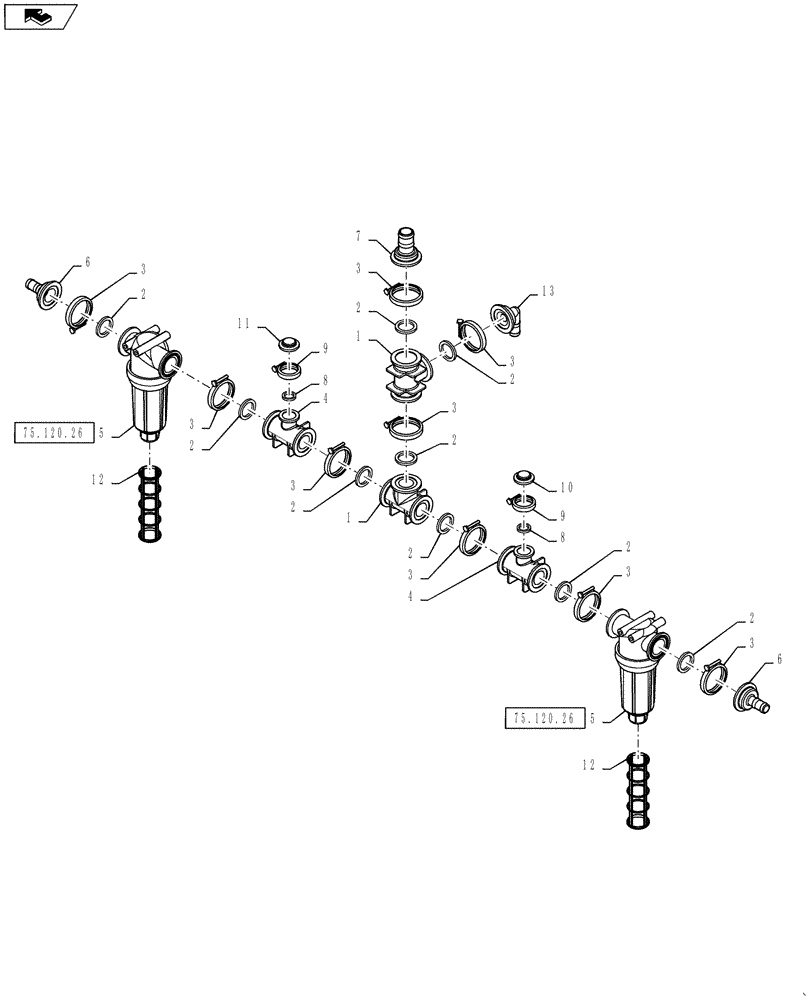

Схема запчастей Case IH 3230 - (75.120.48) - MANIFOLD, CENTER SECTION, 5 SECTION (75) - SOIL PREPARATION
8
2
4
3
2
3
3
9
11
13
2
3
1
3
9
6
7
75.120.26
5
75.120.26
2
3
home
12
8
6
2
10
2
2
12
5
2
4
3
2
3
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN303196

TEE,2" Flange x 2" Flange x 2" Flange, Poly

Elbow, 2" Flange X 1" Hose

2шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

9шт.

3

BN303199

CLAMP,2" Flange

2" STD Flange

9шт.

4

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

2" Flange x 2" Flange x 1" Flange, Poly

2шт.

5

87265489

FILTER STRAINER

Strainer, 2" FLS

2шт.

6

BN317966

FLANGE,2" Flange x 1" Hose Barb, Poly

2" Flange x 1" Hose Barb, Poly

2шт.

7

BN306901

FITTING,2" Flange x 1-1/2" Hose Barb, Poly

2" Flange x 1-1/2" Hose Barb, Poly

1шт.

8

BN303205

GASKET

1” Flange, EPDM

2шт.

9

BN303203

CLAMP,1" Flange

1” Flange Manifold

2шт.

10

BN324133

PLUG,1" Flange x 1/4" Female NPT, Poly

1" Flange x 1/4" FPT, Poly

1шт.

11

BN306897

PLUG,1" Flange, Poly

1" Flange, Poly

1шт.

12

87265492

SCREEN,80 Mesh, SST, Blue

80 MESH,SS,BLUE

2шт.

13

BN322003

FITTING,2" Flange x 1" 90 Degree Hose Barb Elbow

BARB - 2" FLG X 1" HOSE

1шт.
