(75.120.37) - FLOW METER PLUMPING, LO-FLOW

Запчасти Case IH 3230 (75.120.37) - FLOW METER PLUMPING, LO-FLOW (75) - SOIL PREPARATION

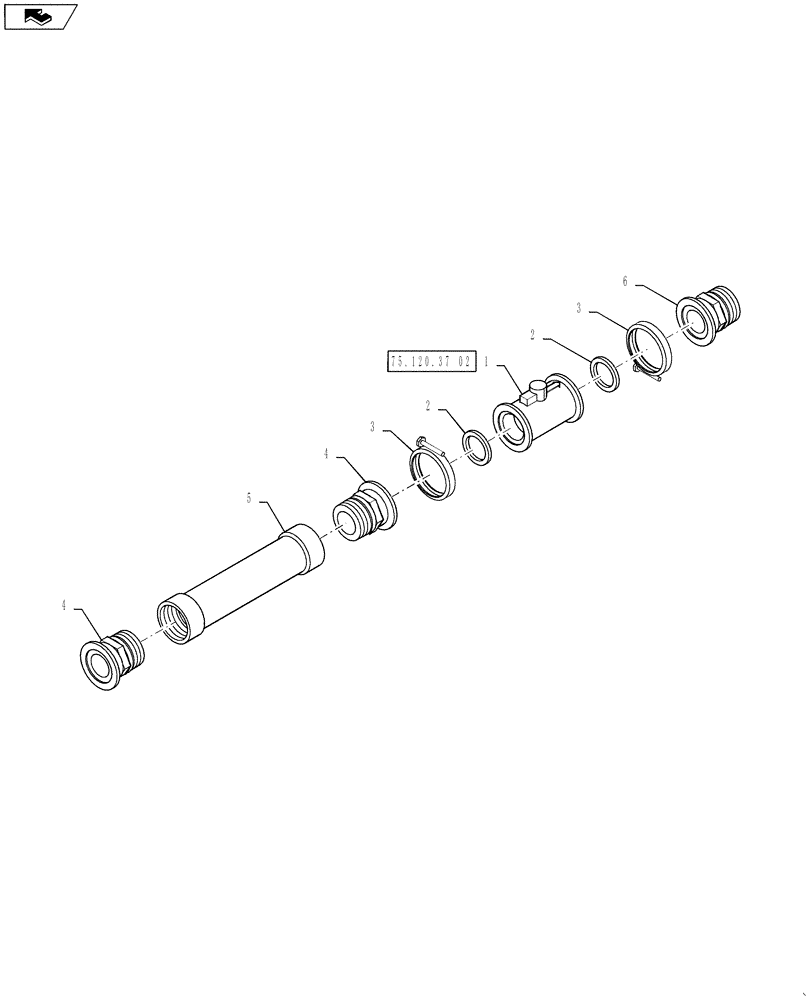

Схема запчастей Case IH 3230 - (75.120.37) - FLOW METER PLUMPING, LO-FLOW (75) - SOIL PREPARATION
2
home
3
4
6
3
2
1
75.120.37 02
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87271267

MEASURING INSTRUMENT

Flowmeter, RFM60P H/P W/D, See Fig 75.120.41 For Service Parts

1шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

2шт.

3

BN303199

CLAMP,2" Flange

2" Standard Flange

2шт.

4

BN303185

ADAPTER,2" Flange x 2" Male NPT, Poly

2" Flange x 2" NPT

2шт.

5

87268152

PIPE

Standard

1шт.

6

BN303190

FITTING,2" Flange x 1-1/2" NPT, Poly

2" Flange x 1-1/2" NPT, Poly

1шт.

Выбрано товаров: 6
