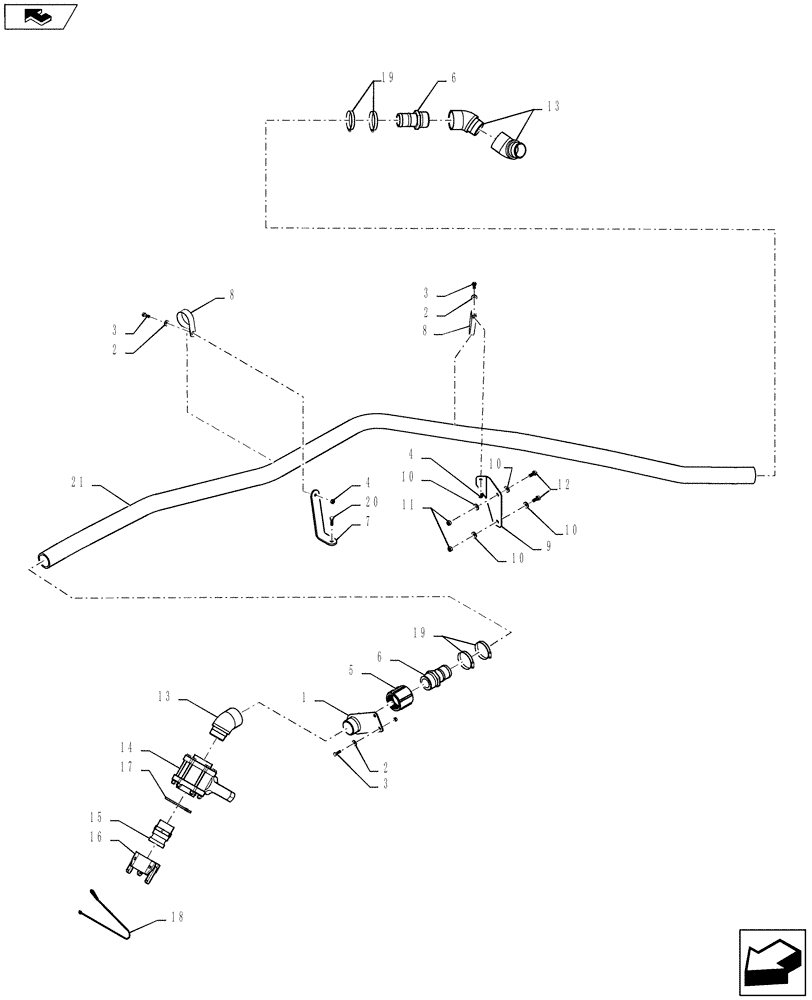

Запчасти Case IH 3230 (75.120.31) - 2" FRONT FILL OPTION (75) - SOIL PREPARATION

1

84582207

MOUNT

Inlet, 2" Valve

1шт.

2

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

6шт.

3

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

4

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

5

84283600

COUPLING,2" Poly Pipe Coupling

2" FPT x 2" FPT, Poly

1шт.

6

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

2шт.

7

84567647

MOUNT

Front, Hose

1шт.

8

515-25635

CLAMP,2 1/2", Insul, 1/2" Bolt

2шт.

9

84567648

MOUNT

Rear, Hose

1шт.

10

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

11

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

12

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

13

BN73793

ELBOW,45 Degree Elbow, 2" Female NPT x 2" Female NPT, Poly

45 Deg, 2" NPT, Poly

3шт.

14

BN73761

VALVE,2" NPT x 2" NPT

Ball, 2" Full Port

1шт.

15

BN2396382

COUPLING,2" Male Adapter-2" Male Thread

2" Cam x 2" MPT, Poly

1шт.

16

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever, Poly

1шт.

17

306132C1

CABLE TIE,14.5" L

CABLE STRAP

1шт.

18

416624A1

ROPE

Lanyard, Nylon, 1/4" X 12"

1шт.

19

BN310449

CLAMP,50mm - 65mm

#32, Stainless Steel

4шт.

20

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

21

BN29564

HOSE

Suction, EPDM, Cut To Length of 10.17'

1шт.
