Запчасти Case IH 3230 (75.120.30) - 3" FRONT FILL OPTION (75) - SOIL PREPARATION

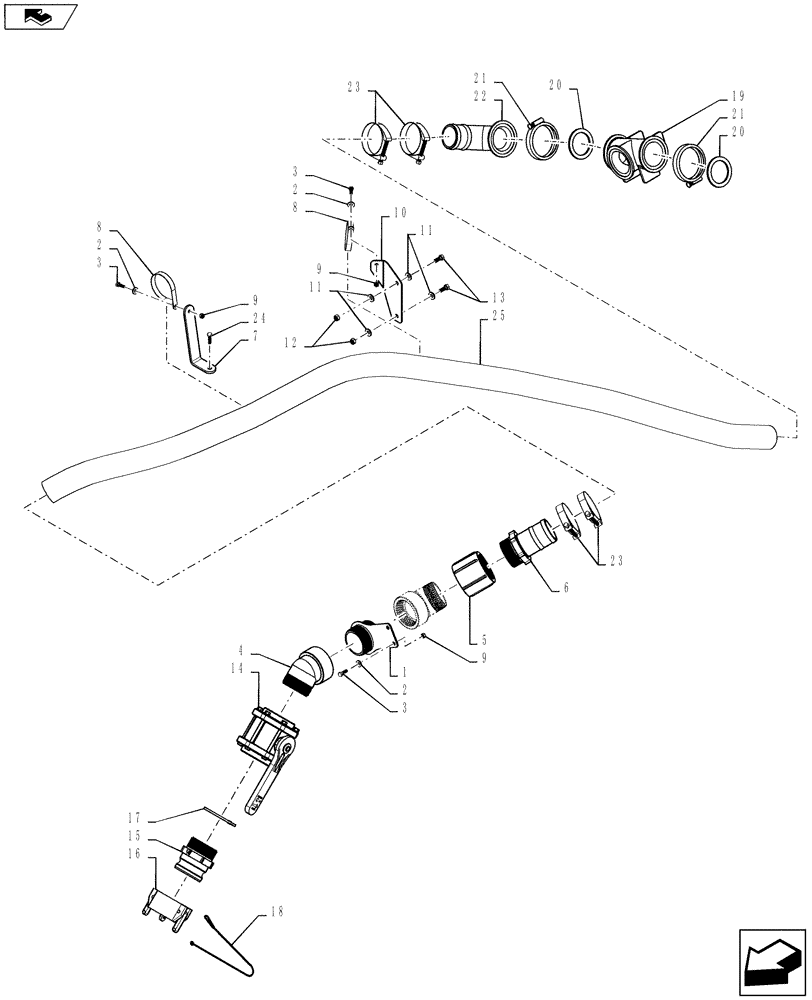

Схема запчастей Case IH 3230 - (75.120.30) - 3" FRONT FILL OPTION (75) - SOIL PREPARATION
22
3
9
10
16
5
25
23
2
23
6
20
14
15
8
2
12
1
18
20
17
24
2
21
3
11
7
4
21
3
9
11
13
19
9
home
8

Артикул

Название

Примечание

Количество

1

84567643

MOUNT

Inlet, 3" Valve

1шт.

2

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

6шт.

3

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

4

BN317995

ELBOW

3" MPT x 3" FPT, Poly

2шт.

5

84410722

PIPE COUPLING,76.2mm ID x 91.281mm L

3" FPT x 3" FPT, Poly

1шт.

6

BN85678

FITTING

3" NPT x 3" Hose Barb, Poly

1шт.

7

84567647

MOUNT

Front, Hose

1шт.

8

87021162

CLAMP,88.9mm, Coat, 8.7mm Bolt Hole, P Type

88.9mm, M8 Bolt, ZND

2шт.

9

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

10

84567648

MOUNT

Rear, Hose

1шт.

11

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

12

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

13

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

14

BN303208

VALVE

Ball, 3" FPT x 3" FPT, Poly

1шт.

15

BN2393306

COUPLING

3" MPT x 3" CAM, Poly

1шт.

16

BN2393384

CAP

Coupler 3" Dust Poly

1шт.

17

306132C1

CABLE TIE,14.5" L

CABLE STRAP

1шт.

18

416624A1

ROPE

Lanyard, Nylon, 1/4" X 12"

1шт.

19

BN321071

FITTING,3" Flange x 3" Hose Barb Tee

Manifold, 3"

1шт.

Connects To Sump Plumbing

1шт.

20

BN321073

GASKET,3" Flange, EPDM

3" Flange, EPDM

2шт.

21

BN321074

CLAMP,101.6mm

3" Flange

2шт.

22

BN321082

FITTING,3" Flange x 3" 90 Degree Hose Barb Elbow

3" Flange x 3" Hose Barb, Poly

1шт.

23

BN2403395

CLAMP

T-Bolt Band 3.56"

4шт.

24

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

25

BN326025

HOSE,3.00" ID BULK

Suction, EPDM, Cut To Length of 10.17'

1шт.

Выбрано товаров: 26
