(75.120.29) - REMOTE STATION RELOAD CENTER

Запчасти Case IH 3230 (75.120.29) - REMOTE STATION RELOAD CENTER (75) - SOIL PREPARATION

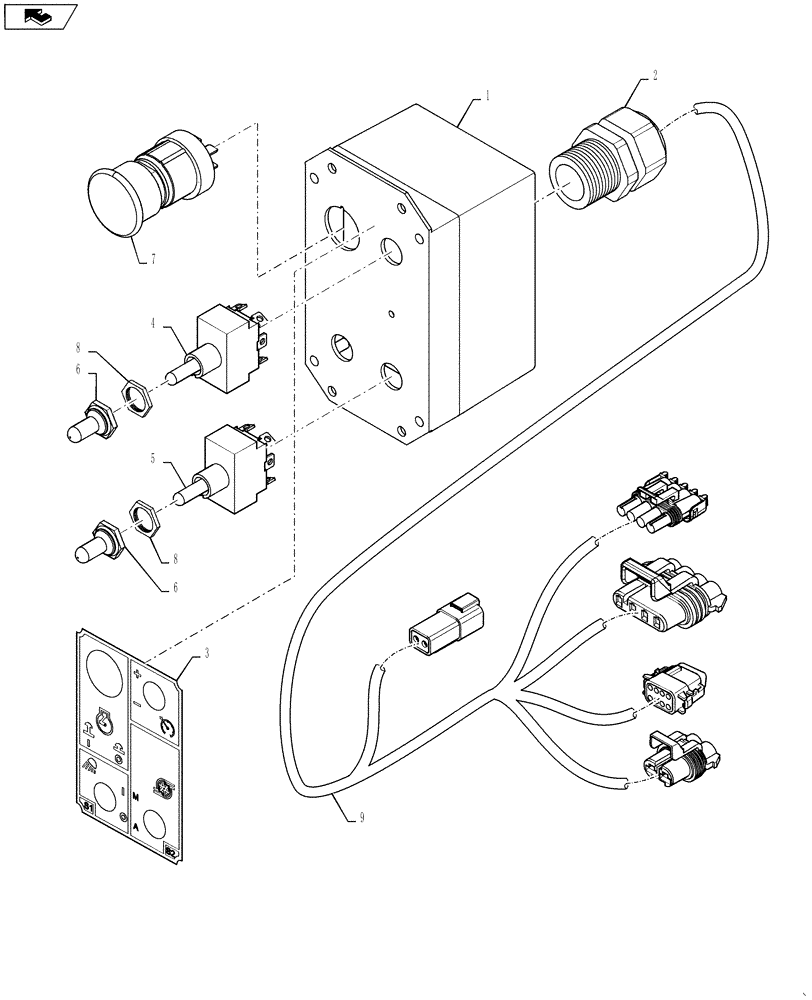

Схема запчастей Case IH 3230 - (75.120.29) - REMOTE STATION RELOAD CENTER (75) - SOIL PREPARATION
4
3
6
2
6
1
7
5
home
8
9
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86986403

SHIELD

Enclosure, With Rework

1шт.

2

BN66117

NUT

Strain Relief-Shift Cable

1шт.

3

86986405

DECAL

REMOTE STATION

1шт.

4

BN29445

SWITCH

On-Off-On

1шт.

5

BN24129

SWITCH

On-None-On Dpdt

2шт.

6

343660A1

COVER

switch, black, toggle

3шт.

7

86986404

SWITCH

push/pull, sealed

1шт.

8

BN324373

NUT

1/2" toggle switch

3шт.

9

87266537

HARNESS

REMOTE MODULE

1шт.
