Запчасти Case IH 3230 (75.120.28[02]) - STRAINER, ELEMENT, 2.2FLB, PP (75) - SOIL PREPARATION

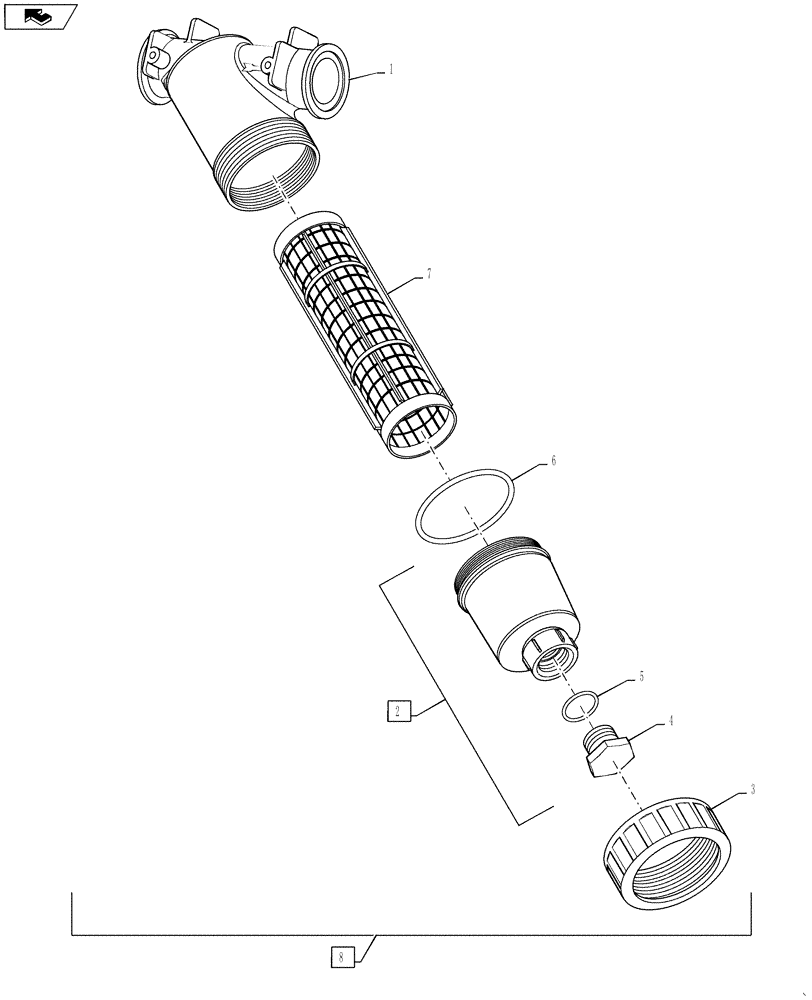

Схема запчастей Case IH 3230 - (75.120.28[02]) - STRAINER, ELEMENT, 2.2FLB, PP (75) - SOIL PREPARATION
6
home
7
8
5
2
4
1
3

Артикул

Название

Примечание

Количество

1

87706934

BODY,2" Flanged Y Strainer Body

2" Full Port, Manifold Strainer Head

1шт.

2

87706935

CAP,2" Flanged Y Strainer Cap

Lower Body, Includes Plug Ref 4 and Gasket Ref 5

1шт.

3

87706937

RING,2" Flanged Y Strainer Ring

Screw-On

1шт.

4

87706931

PLUG,1" Clean Out Plug

Drain

1шт.

5

87706932

O-RING,1.174" ID x 1.38" OD x 0.103"

Drain Plug

1шт.

6

87706938

O-RING,3.859" ID x 4.137" OD x 0.139"

Located Between Strainer Head And Lower Cap

1шт.

7

87706928

SCREEN,10 SS Mesh Screen

10 Mesh, Stainless Steel

1шт.

7

87633431

SCREEN,80 SS Mesh Screen

80 Mesh, Stainless Steel, Optional, Not Shown

1шт.

7

87633430

SCREEN,50 SS Mesh Screen

50 Mesh, Stainless Steel, Optional, Not Shown

1шт.

8

87706933

FILTER STRAINER,2" Full Port Manifold Y Strainer w/10 Mesh Screen

"Y" Style, 2" Full Port Flange, 10 Mesh Screen, Poly, Includes Ref 1 - 7

1шт.

Выбрано товаров: 10
