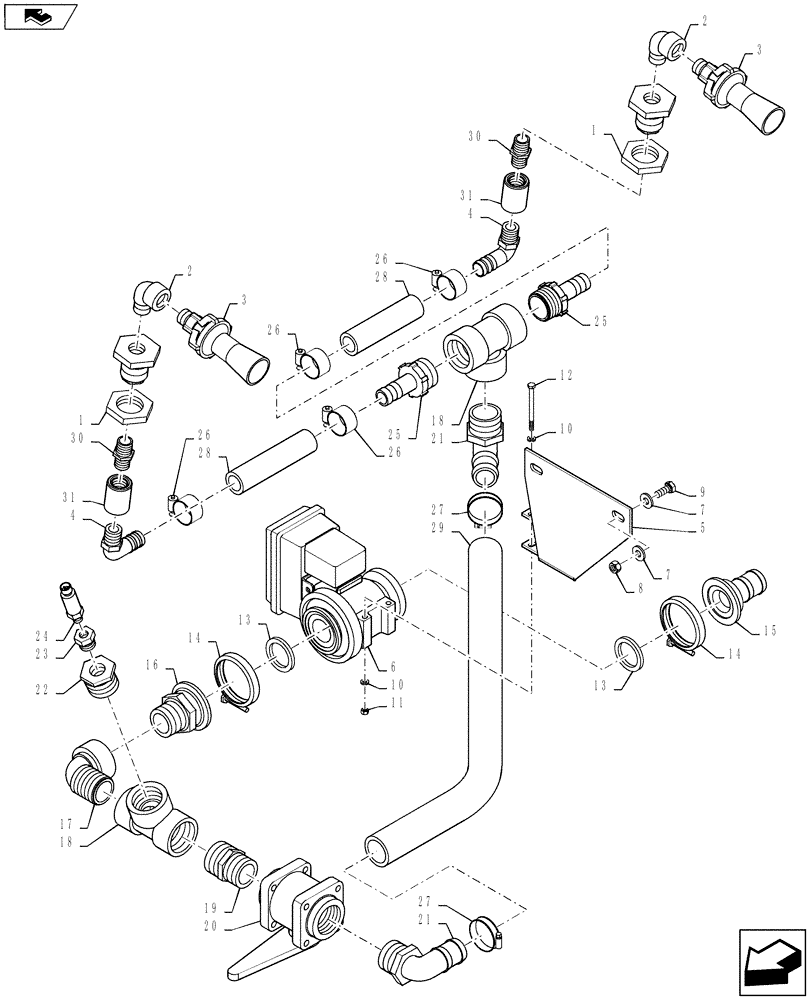

Запчасти Case IH 3230 (75.120.24) - PLUMBING, SPARGE (75) - SOIL PREPARATION

1

BN311041

FITTING

bulkhead 3/4" dfpt c/w epdm gasket

2шт.

2

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

3/4" MPT x 3/4" FPT, Poly

2шт.

3

BN304248

AGITATOR

Tank Mixing

2шт.

4

134271C2

ELBOW,ELBOW, 90

3/4" NPT x 1" Hose Barb, Poly

2шт.

5

87270416

MOUNTING PLATE

Sparge Valve

1шт.

6

BN324054

VALVE,2" Full Port Flange x 2" Full Port Flange

1-1/2" B, Electric

1шт.

See Fiqure 75.120.32

1шт.

7

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

8

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

9

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

10

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

4шт.

11

BN86980513

NUT

M6 CL8 DOR

2шт.

12

86980369

BOLT,Hex, M6 x 80, Cl 8.8

M6 1 x 80, HH, 8.8, DOR

2шт.

13

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

2шт.

14

BN303199

CLAMP,2" Flange

2" Standard Flange

2шт.

15

434039A1

FITTING,2" Flange x 1-1/2" Hose Barb

2" Manifold x 1-1/2" Hose Barb, Poly

1шт.

16

BN303190

FITTING,2" Flange x 1-1/2" NPT, Poly

2" Flange x 1-1/2" NPT, Poly

1шт.

17

BN73730

ELBOW,1-1/2", Poly

Straight, 1 1/2" Poly

1шт.

18

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

2шт.

19

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 1/2" Short Poly

1шт.

20

BN73711

VALVE,1-1/2" NPT x 1-1/2" NPT

1 1/2" Ball

1шт.

21

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

2шт.

22

BN73716

BUSHING,1-1/2" Male NPT x 3/4" Female NPT, Poly

1.5 x .75 Reducer Poly

1шт.

23

BN73550

BUSHING

Reducer, 3/4" MPT x 1/4" FPT, Poly

1шт.

24

84201517

TRANSDUCER

Pressure Sealed

1шт.

25

BN304513

PIPE FITTING,1-1/2" Male Thread x 1" Hose Barb

STR, 1.5MP 1.0HB, PP

2шт.

26

87487834

CLAMP,0.81" - 1.5"

Type F #16 SST 300 SER

4шт.

27

BN310448

HOSE CLAMP

#28, Stainless Steel

2шт.

28

BN53479

HOSE,1.00" ID BULK

EPDM Discharge

1.04шт.

29

BN53842

HOSE,38.10 mm ID Bulk

Discharge

2.69шт.

30

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

2шт.

31

BN73574

COUPLING

3/4" Poly

2шт.
