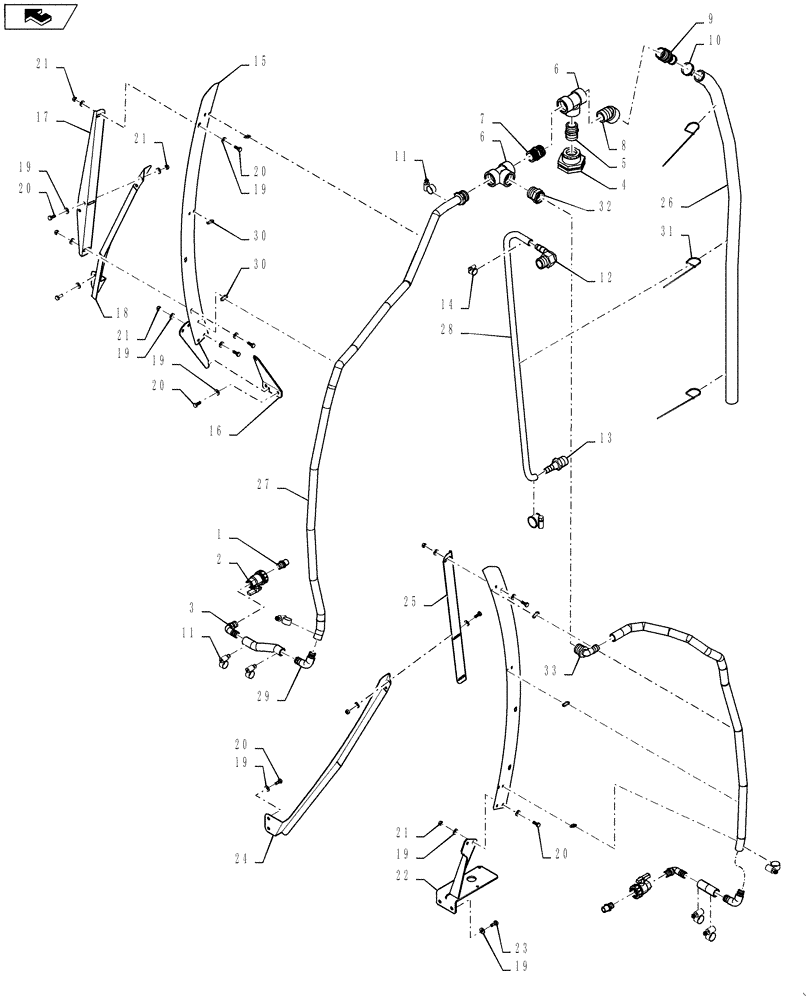

Запчасти Case IH 3230 (75.120.22) - PLUMBING, SIGHT GAUGE/VENT  (75) - SOIL PREPARATION

1

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

2шт.

2

BN324588

VALVE

Ball 3/4" SU Poly

2шт.

3

BN73575

FITTING

Barb, 3/4" X 1" SHK x 90º

2шт.

4

BN73733

FITTING

1 1/2" Bulkhead

1шт.

5

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 1/2" Short Poly

2шт.

6

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

2шт.

7

BN304513

PIPE FITTING,1-1/2" Male Thread x 1" Hose Barb

STR, 1.5MP 1.0HB, PP

1шт.

8

BN310467

ELBOW

1-1/2" NPT x 1-1/2" NPT, Poly, 45º

1шт.

9

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

1шт.

10

BN310448

HOSE CLAMP

#28, Stainless Steel

1шт.

11

87487834

CLAMP,0.81" - 1.5"

Type F #16 SST 300 SER

8шт.

12

BN73412

ELBOW,90 Degree,1/4" MPT x 1/4" HB

1/4" NPT x 1/4" Hose Barb, Poly

1шт.

13

BN72040

FITTING,1/8" MPT x 1/4" HB

Hose Barb, 1/8" NPT x 1/4" ID HS

1шт.

Fitting Is Installed Into The 1/8" Port On The Outlet Of The Product Pump

1шт.

14

BN310450

HOSE CLAMP

#3, Stainless Steel

2шт.

15

87580662

PLATE

Sight Gauge, Front

2шт.

16

87754420

MOUNT

Sight Gauge

1шт.

17

87754421

SUPPORT

Sight Gauge

1шт.

18

87754422

SUPPORT

Sight Gauge

1шт.

19

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

32шт.

20

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

18шт.

21

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

12шт.

22

84153770

MOUNT

Sight Gauge, Rear

1шт.

23

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

24

84153772

SUPPORT

Sight Gauge

1шт.

25

84153771

SUPPORT

Sight Gauge

1шт.

26

BN309785

HOSE

Kanaflex 390SD, 1 1/2" x 13.8'

6шт.

27

BN54256

HOSE

1.0" ID x 1/8"

1шт.

28

BN72041

HOSE

1/4" Bulk EPDM Discharge

6шт.

29

342684A1

FITTING,1" 90 Degree Poly Hose Barb Elbow

90º, 1.0HB, 1.0HB, PP

2шт.

30

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

6шт.

31

BN570007

STRAP

Black Only .12-4.0 Band

3шт.

32

BN73726

REDUCER FITTING,1-1/2" MPT x1-1/4" FPT Reducing Bushing

1-1/2" NPT X 1-1/4" NPT, Poly

1шт.

33

BN2296590

90 ELBOW

1-1/4" MPT x 1" Hose Barb, Poly

1шт.
