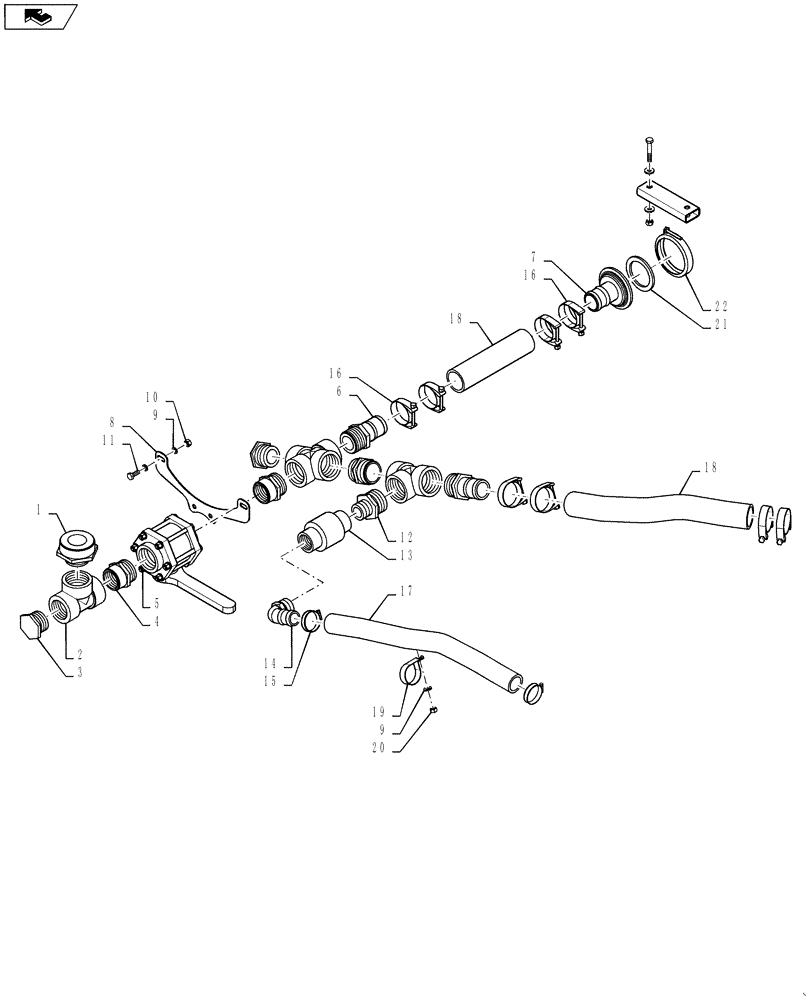

Запчасти Case IH 3230 (75.120.21[01]) - 2" SUMP PLUMBING, BSN YCT031944 (75) - SOIL PREPARATION

1

BN86472

NIPPLE

Reducer 3" x 2"

1шт.

2

BN73779

TEE,2" Poly Tee

2" Poly Pipe

3шт.

3

BN73794

PLUG,2" Male NPT, Poly

2" Poly Pipe

1шт.

4

BN73783

NIPPLE

2" NPT Short Poly

3шт.

5

BN73761

VALVE,2" NPT x 2" NPT

Ball, 2" Full Port

1шт.

6

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

2шт.

7

BN321080

FITTING,3" Flange x 2" Hose Barb, Poly

3" x 2" Hose Barb

1шт.

8

87745038

SUPPORT

Valve

1шт.

9

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

5шт.

10

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

11

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

12

BN317158

NIPPLE,2" Male NPT x 1-1/4" Male NPT

2" x 1 1/4" Reducer

1шт.

13

BN24567

CHECK VALVE

1 1/4" NPT

1шт.

14

87265957

FITTING,1-1/4"Male Thread x 1-1/2" 90 Degree Hose Barb

90º, 1 1/4" mp x 1 1/2" hb, Poly

1шт.

15

BN310448

HOSE CLAMP

#28, Stainless Steel

2шт.

16

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

8шт.

17

BN53842

HOSE,38.10 mm ID Bulk

Discharge

2.43шт.

18

BN29564

HOSE

2" Bulk EPDM Suction

2.6шт.

19

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

20

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

21

BN321073

GASKET,3" Flange, EPDM

Manifold, 3"

1шт.

22

BN321074

CLAMP,101.6mm

Manifold, 3"

1шт.
