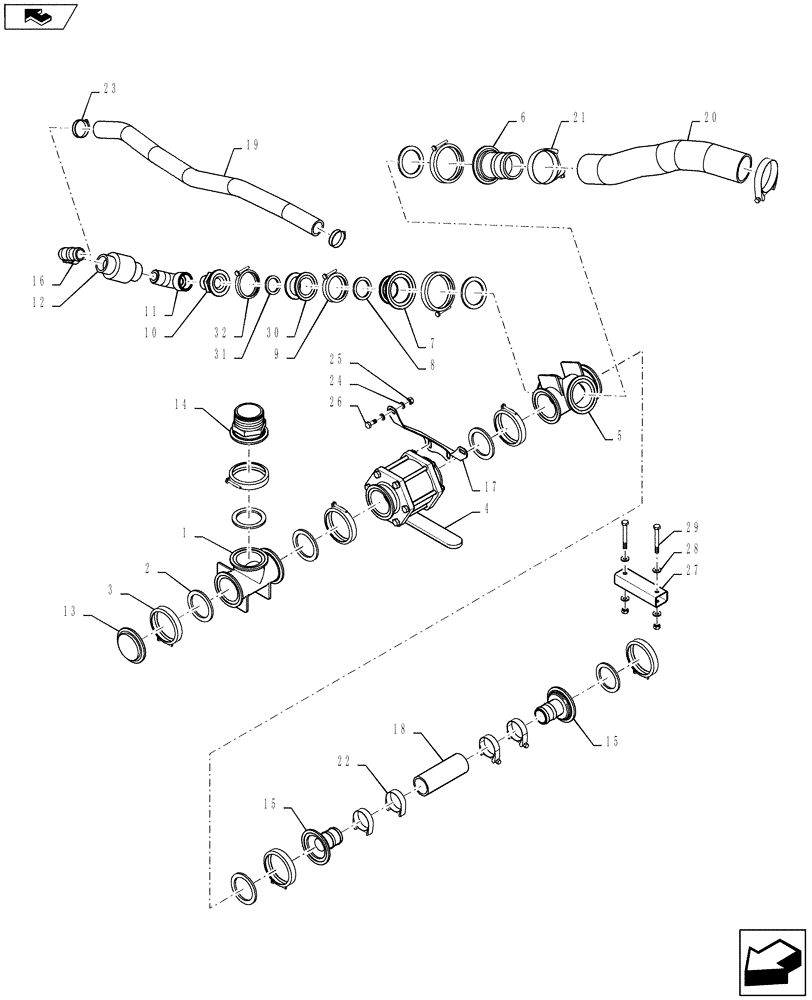

Запчасти Case IH 3230 (75.120.20) - PLUMBING, 3" SUMP (75) - SOIL PREPARATION
№
Артикул
Название
Примечание
Количество
1
BN321071
FITTING,3" Flange x 3" Hose Barb Tee
Manifold, 3"
1шт.
2
BN321073
GASKET,3" Flange, EPDM
Manifold, 3"
8шт.
3
BN321074
CLAMP,101.6mm
Manifold, 3"
8шт.
4
BN321070
VALVE,3" Flange
Ball, 3" Flange
1шт.
5
BN321076
CROSS,3" Flange x 3" Flange x 3" Flange x 3" Flange, Poly
Manifold, 3"
1шт.
6
BN321075
FITTING,3" Flange x 3" Hose Barb, Poly
3" Flange x 3" Hose Barb, Poly
1шт.
7
BN321072
REDUCER,3" Flange x 2" Full Port Flange, Poly
3" Flange x 2" Full Port Flange, Poly
1шт.
8
BN313772
GASKET,2" Full Port, EPDM
2" Flange, EPDM
1шт.
9
BN313773
CLAMP,2" Full Port
2" Flange
1шт.
10
BN306902
FITTING,2" Flange x 1-1/4" Male NPT, Poly
Straight 2" Flange x 1.25 Male
1шт.
11
BN324890
ELBOW
90º, 1.25 NPT Straight
1шт.
12
BN24567
CHECK VALVE
1 1/4" NPT
1шт.
13
BN321079
PLUG,3" Flange
Manifold, 3"
1шт.
14
BN321078
ADAPTER
Manifold, 3" x 3" Male
1шт.
15
BN321080
FITTING,3" Flange x 2" Hose Barb, Poly
3" x 2" Hose Barb
2шт.
16
87265957
FITTING,1-1/4"Male Thread x 1-1/2" 90 Degree Hose Barb
90º, 1 1/4" mp x 1 1/2" hb, Poly
1шт.
17
84188916
SUPPORT
Valve
1шт.
18
BN29564
HOSE
2" Bulk EPDM Suction
1шт.
19
BN53842
HOSE,38.10 mm ID Bulk
Discharge
4.04шт.
20
BN326025
HOSE,3.00" ID BULK
S/D, EPDM
2.17шт.
21
BN2403395
CLAMP
T-Bolt Band 3.56"
2шт.
22
BN2403358
CLAMP,50.8mm - 63.5mm
T-Bolt Band 2 1/2"
4шт.
23
BN310448
HOSE CLAMP
#28, Stainless Steel
2шт.
24
87529315
WASHER,9mm ID x 17mm OD x 2mm Thk
9 x 17 x 2 mm, HDN, DOR
4шт.
25
86980515
NUT,Hex, M10 x 1.5, Cl 8.8, DOR
4шт.
26
86980400
BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd
2шт.
27
84223386
SPACER
Pump
1шт.
29
86980408
BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8
2шт.
30
BN322100
REDUCER,2" Full Port x 2" Reducer Flange
2" Full Port Flange X 2" Flange
1шт.
31
BN303204
GASKET,1-1/2" EPDM Gasket
2" Flange, EPDM
1шт.
32
BN303199
CLAMP,2" Flange
2" Standard Flange
1шт.
Выбрано товаров: 32
