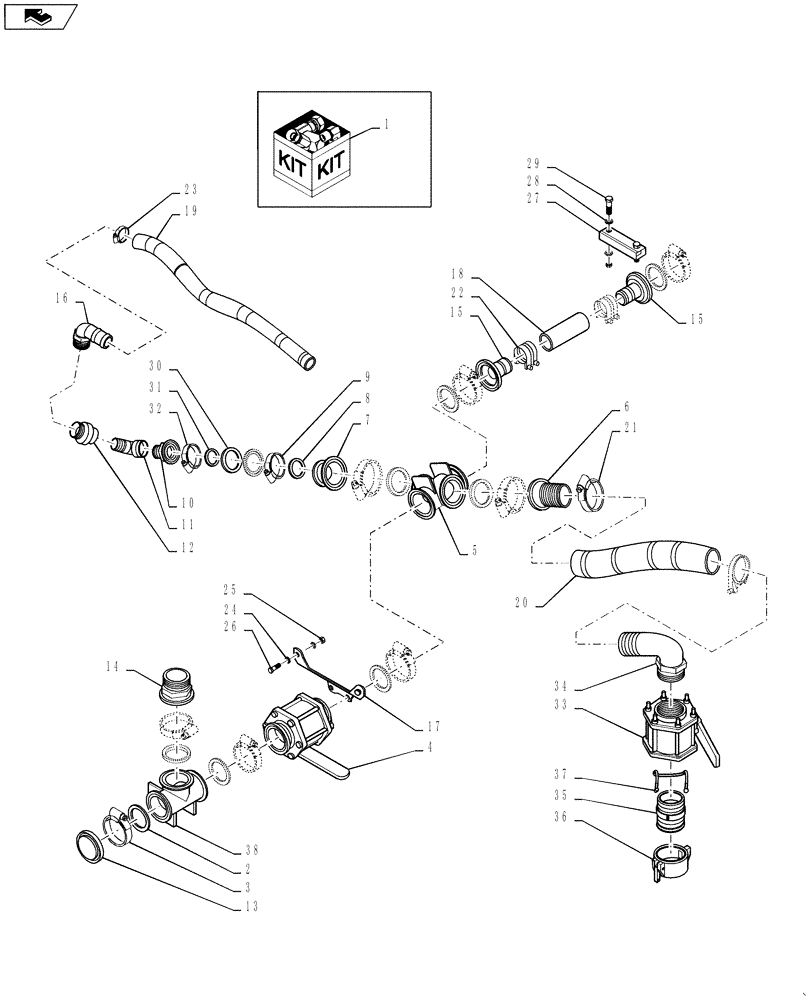

Запчасти Case IH 3230 (75.120.19[03]) - DIA KIT, 2" FILL TO 3" FILL CONVERSION (75) - SOIL PREPARATION

1

84225663

KIT

2" To 3" Fill Conversion

1шт.

2

BN321073

GASKET,3" Flange, EPDM

3.0 FLB, EPDM

8шт.

3

BN321074

CLAMP,101.6mm

3.0 FLB

8шт.

4

BN321070

VALVE,3" Flange

Ball, 3.0 FLB, PP

1шт.

5

BN321076

CROSS,3" Flange x 3" Flange x 3" Flange x 3" Flange, Poly

Manifold, 3"

1шт.

6

BN321075

FITTING,3" Flange x 3" Hose Barb, Poly

3" Flange x 3" Hose Barb, Poly

1шт.

7

BN321072

REDUCER,3" Flange x 2" Full Port Flange, Poly

3" Flange x 2" Full Port Flange, Poly

1шт.

8

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

1шт.

9

BN313773

CLAMP,2" Full Port

2" Flange

1шт.

10

BN306902

FITTING,2" Flange x 1-1/4" Male NPT, Poly

2.0 FLB 1.25 MP, PP

1шт.

11

BN324890

ELBOW

90, 1.25 MP 1.25 FP, PP

1шт.

12

BN24567

CHECK VALVE

1 1/4" npt

1шт.

13

BN321079

PLUG,3" Flange

Manifold 3"

1шт.

14

BN321078

ADAPTER

STR, 3.0 FLB 3.0 MP, PP

1шт.

15

BN321080

FITTING,3" Flange x 2" Hose Barb, Poly

STR, 3.0 FLB 2.0 HB, PP

2шт.

16

87265957

FITTING,1-1/4"Male Thread x 1-1/2" 90 Degree Hose Barb

90, 1.25MP 1.5HB, PP

1шт.

17

84188916

SUPPORT

Valve

1шт.

18

BN29564

HOSE

2" Bulk EPDM Suction

1шт.

19

BN53842

HOSE,38.10 mm ID Bulk

Discharge

3.87шт.

20

BN326025

HOSE,3.00" ID BULK

S/D, EPDM

2.17шт.

21

BN2403395

CLAMP

T Bolt For 1-1/2" EPDM

2шт.

22

BN2403358

CLAMP,50.8mm - 63.5mm

T Bolt For 1-1/2" EPDM

4шт.

23

BN310448

HOSE CLAMP

#28, Stainless Steel

2шт.

24

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 X 17 X 2MM HTS DOR HDN

4шт.

25

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

26

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

27

84223386

SPACER

Pump

1шт.

28

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

29

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

30

BN322100

REDUCER,2" Full Port x 2" Reducer Flange

RDCR, 2.2 FLB 2.0 FLB, PP

1шт.

31

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

1шт.

32

BN303199

CLAMP,2" Flange

2", STD FLG

1шт.

33

BN313506

VALVE,3" Standard Port Valve

BALL, 3.0 FP, PP, LG-BOLT

1шт.

34

BN307945

FITTING

90, 3.0MP 3.0HB, PP

1шт.

35

BN2393306

COUPLING

3.0 CAMM, 3.0 MP, PP

1шт.

36

BN2393306

COUPLING

3.0 CAM, PP

1шт.

37

BN321087

STRAP

Lanyard, 11"

1шт.

38

BN321071

FITTING,3" Flange x 3" Hose Barb Tee

Manifold 3"

1шт.
