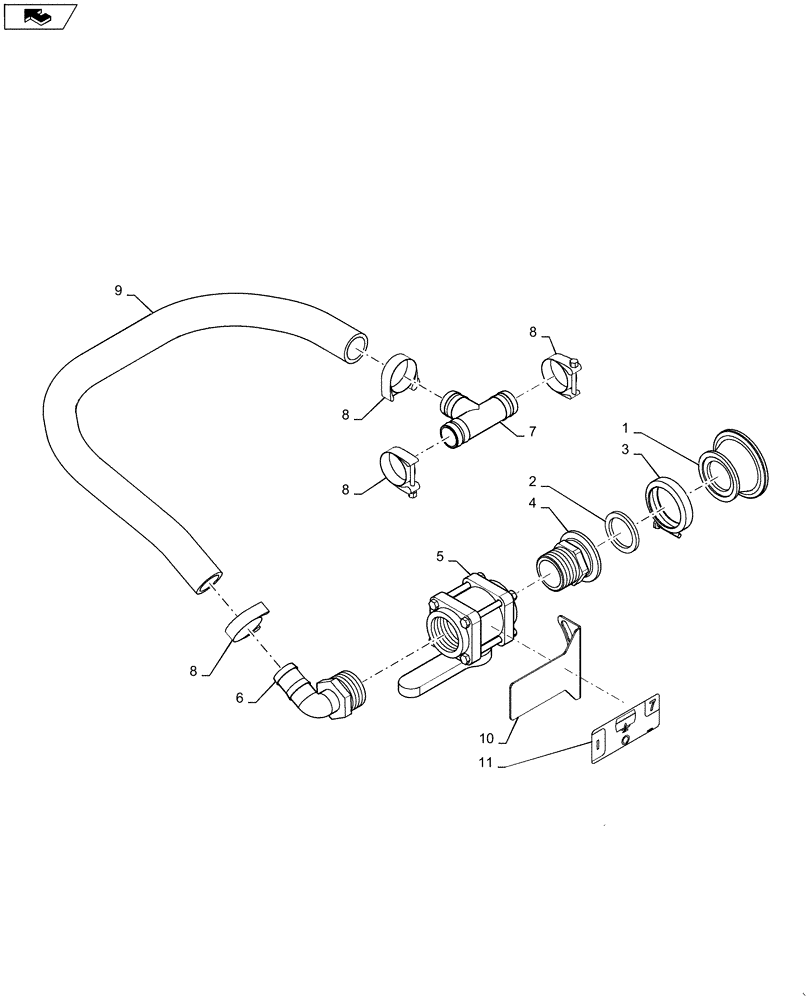

Запчасти Case IH 3230 (75.120.18[02]) - SUCTION FILL, 3" (75) - SOIL PREPARATION

1

BN321072

REDUCER,3" Flange x 2" Full Port Flange, Poly

3" Flange x 2" Full Port Flange, Poly

1шт.

2

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

1шт.

3

BN313773

CLAMP,2" Full Port

2" Flange

1шт.

4

BN314241

MANIFOLD,2" Full Port Flange x 2" Male NPT, Poly

2" MPT x 2" Flange, Poly

1шт.

5

BN317387

VALVE,2" Standard Port Valve

2 WAY 1.5" POLY

1шт.

6

BN314145

SHANK

Hose, 90 2 NPT 1 1/2

1шт.

7

BN2402038

TEE

1.50 HB, PP

1шт.

8

BN53811

CLAMP

T-Bolt, 1.93-2.18

4шт.

9

BN53842

HOSE,38.10 mm ID Bulk

Discharge

3шт.

10

47527172

MOUNT

Decal

1шт.

11

47827909

DECAL

Suction Fill

1шт.
