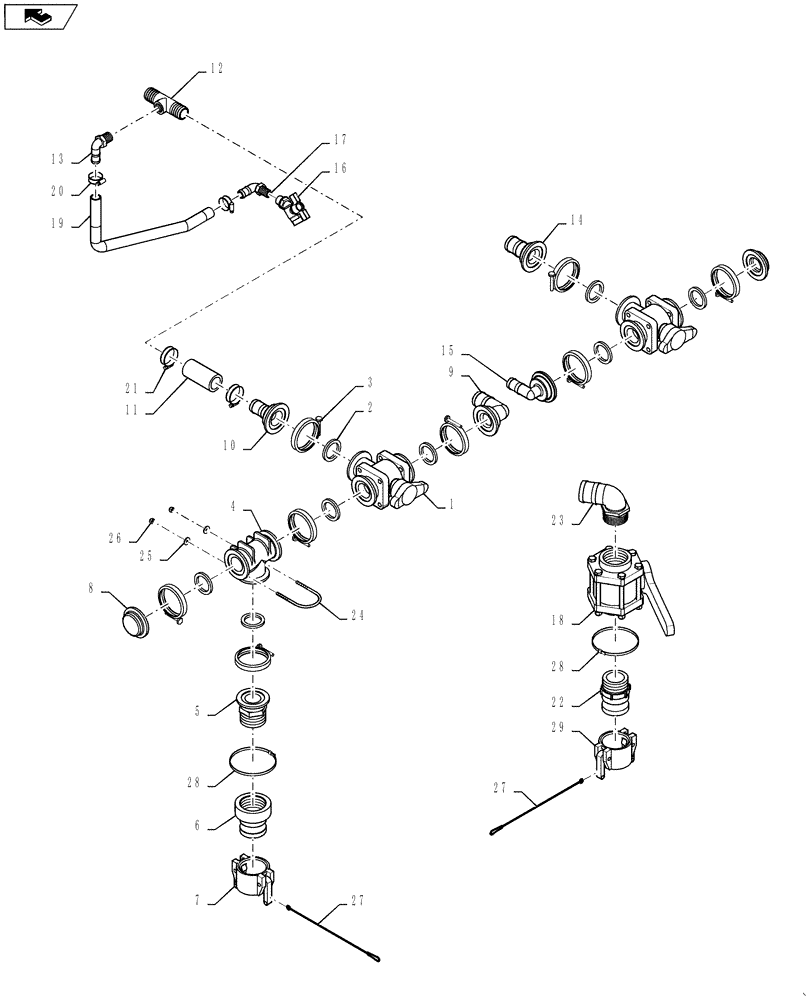

Запчасти Case IH 3230 (75.120.18[01]) - PLUMBING, 3" FILL (75) - SOIL PREPARATION

1

BN324998

VALVE

Ball, 2" Flange x 2" Flange

2шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

8шт.

3

BN303199

CLAMP,2" Flange

2" Standard Flange

8шт.

4

BN303196

TEE,2" Flange x 2" Flange x 2" Flange, Poly

2" Flange, Poly

1шт.

5

BN303185

ADAPTER,2" Flange x 2" Male NPT, Poly

2" Flange x 2" NPT

1шт.

6

BN304330

ADAPTER

2" Cam X 2" NPT

1шт.

7

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

8

BN304317

PLUG,2" Flange, Poly

2" Manifold Flange

2шт.

9

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 1/2" Hose Barb, Poly

1шт.

10

BN306900

FITTING,2" Flange x 1-1/4" Hose Barb, Poly

2” Flange x 1 1/4" Hose Barb

1шт.

11

BN53842

HOSE,38.10 mm ID Bulk

Discharge

1шт.

12

BN311026

TEE

1 1/4" Hose Barb x 1 1/4" Hose Barb x 3/4" fp, Poly

1шт.

13

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

1шт.

14

BN306901

FITTING,2" Flange x 1-1/2" Hose Barb, Poly

2" Flange x 1-1/2" Hose Barb, Poly

1шт.

15

BN322003

FITTING,2" Flange x 1" 90 Degree Hose Barb Elbow

2" Flange x 1" Hose Barb

1шт.

16

BN53817

DRAIN VALVE

Ball, 1/2" NPT x Garden Hose Thread, Blue Handle

1шт.

17

BN73519

ELBOW

1/2" NPT x 3/4" Hose Barb

1шт.

18

BN313506

VALVE,3" Standard Port Valve

Ball, 3" fp, Poly

1шт.

19

BN27905

HOSE,19.05mm ID x 304.8mm L

EPDM 3/4" ID x 12"

1.54шт.

20

BN310446

HOSE CLAMP

#12, Stainless Steel

2шт.

21

BN320156

HOSE CLAMP

#24, Stainless Steel

2шт.

22

BN2393306

COUPLING

F 3" poly

1шт.

23

BN307945

FITTING

3" mp x 3" Hose Barb, Poly, 90º

1шт.

24

BN303201

U-BOLT

BOLT "U" 1/4 x 2.38R x 3.75

1шт.

25

BN50138

WASHER,1/4", SS

2шт.

26

BN55359

LOCK NUT,1/4"-20, SS

2шт.

27

416624A1

ROPE

Nylon, 1/4" x 12"

2шт.

28

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14" with stainless locking clip

2шт.

29

BN2393384

CAP

Coupler 3" Dust Poly

1шт.
