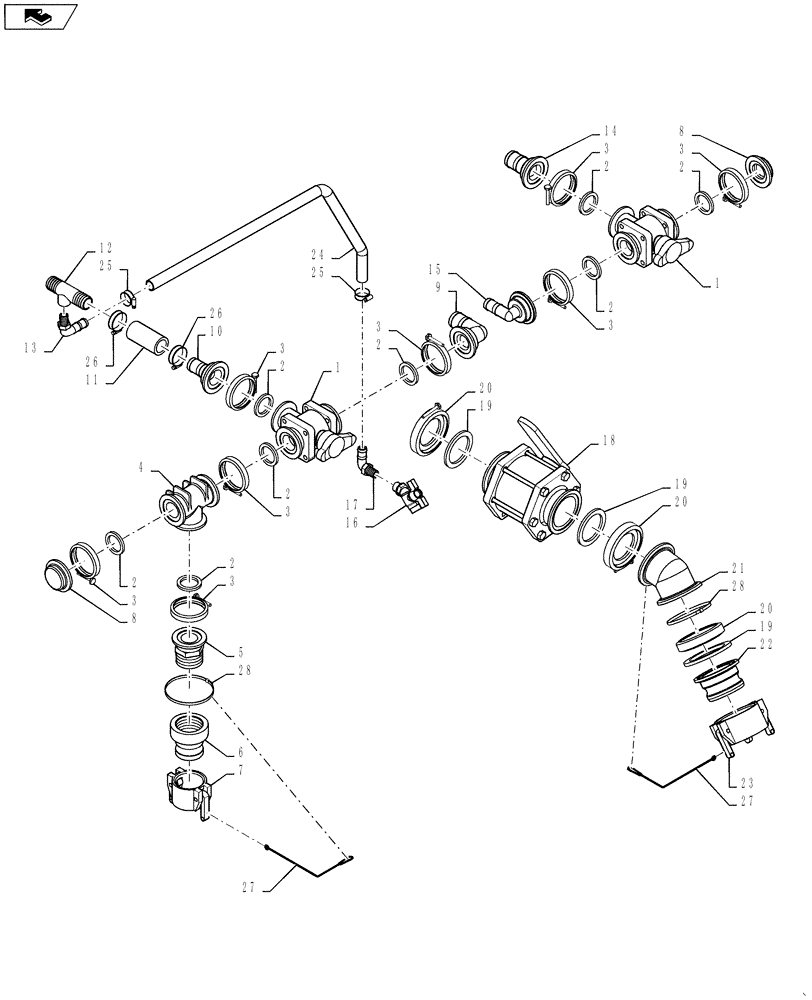

Запчасти Case IH 3230 (75.120.17) - FILL STATION, PLUMBING (75) - SOIL PREPARATION
№
Артикул
Название
Примечание
Количество
1
BN324998
VALVE
Ball, 2" Flange x 2" Flange
2шт.
2
BN303204
GASKET,1-1/2" EPDM Gasket
2" Flange, EPDM
8шт.
3
BN303199
CLAMP,2" Flange
2" Standard Flange
8шт.
4
405779A1
TEE,2" Port Flanged Tee
Poly 2" Flange Manifold
1шт.
6
BN304330
ADAPTER
2" Cam X 2" NPT
1шт.
7
BN22901
DUST CAP,2" Cam Lever Dust Cap
2" Cam Lever
1шт.
8
86984085
PLUG,2" Flange Plug
2" Manifold
2шт.
9
FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow
2" Flange x 1 1/2" Hose Barb, Poly
1шт.
10
BN306900
FITTING,2" Flange x 1-1/4" Hose Barb, Poly
2” Flange x 1 1/4" Hose Barb
1шт.
11
87271155
HOSE,1.25" ID
Suction, Standard
1шт.
12
BN311026
TEE
1 1/4" Hose Barb x 1 1/4" Hose Barb x 3/4" fp, Poly
1шт.
13
BN73562
FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb
3/4" NPT x 3/4" Hose Barb, 90°, PP
1шт.
14
434039A1
FITTING,2" Flange x 1-1/2" Hose Barb
2" Manifold x 1-1/2" Hose Barb, Poly
1шт.
15
BN322003
FITTING,2" Flange x 1" 90 Degree Hose Barb Elbow
2" Flange x 1" Hose Barb
1шт.
16
BN53817
DRAIN VALVE
Ball, 1/2" NPT x Garden Hose Thread, Blue Handle
1шт.
17
BN73519
ELBOW
1/2" NPT x 3/4" Hose Barb
1шт.
18
BN321070
VALVE,3" Flange
Ball, 3" Flange
1шт.
19
BN321073
GASKET,3" Flange, EPDM
Manifold, 3"
3шт.
20
BN321074
CLAMP,101.6mm
Manifold, 3"
3шт.
21
87266599
COUPLING,3" x 3" 45 Degree Full Port Flange
Manifold 3" x 45º
1шт.
22
343025A1
ADAPTER,3" Full Port Flange x 3" Male Adapter
adapter, 3" manifold x 3" cam
1шт.
23
BN2393384
CAP
Coupler 3" Dust Poly
1шт.
24
BN27905
HOSE,19.05mm ID x 304.8mm L
EPDM 3/4" ID x 12"
3шт.
25
BN310446
HOSE CLAMP
#12, Stainless Steel
2шт.
26
BN310447
HOSE CLAMP
#20, Stainless Steel
2шт.
27
BN321087
STRAP
LANYARD
1шт.
29
87557084
CABLE TIE,14"
CABLE STRAP 14" with stainless locking clip
1шт.
Выбрано товаров: 29
