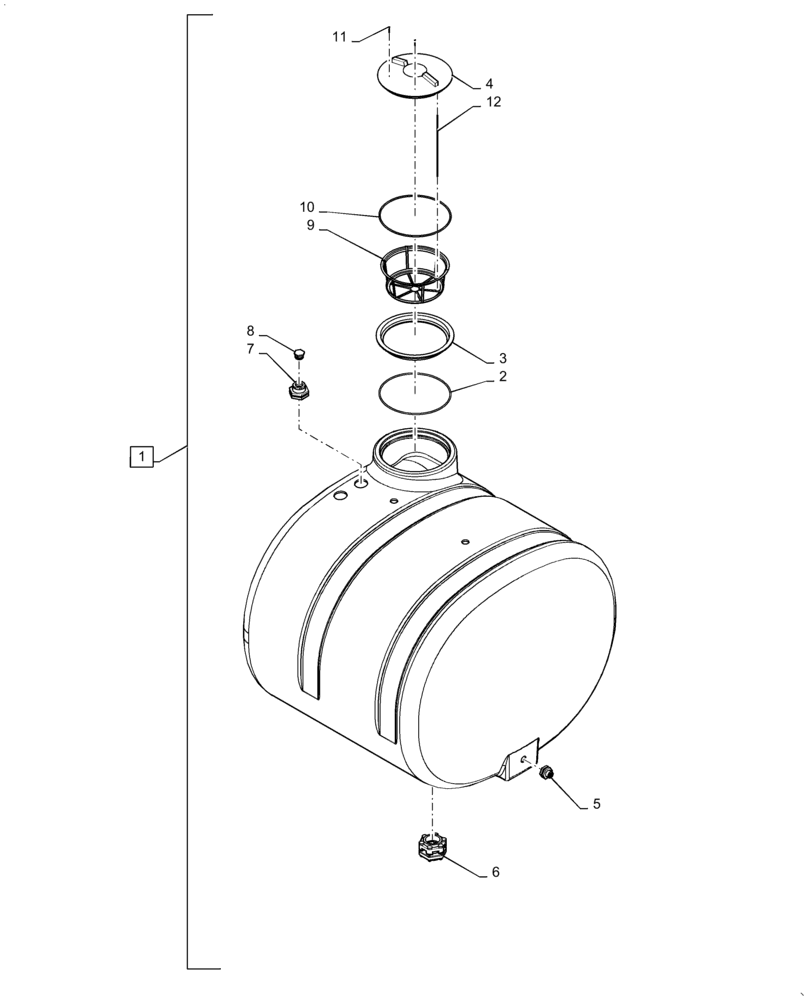

Запчасти Case IH 3230 (75.120.14[01]) - TANK GROUP, 800 GALLON POLY (75) - SOIL PREPARATION

1

87470710

TANK

800 Gallon Poly - Complete

1шт.

2

87558657

SEAL,7.5mm Thk x 415mm ID

Seal Lid

1шт.

3

87558658

RING

Lid

1шт.

4

21908

LID

tank no vent

1шт.

5

BN311041

FITTING

.75FP, 1.63 Hole

2шт.

6

84142695

FLANGE,3" x 3" Threaded EPDM Flange

3.00FP, Bottom Drain, PP

1шт.

7

BN73733

FITTING

1 1/2" Bulkhead

1шт.

8

BN73731

PLUG,1-1/2" Male NPT, Poly

1 1/2" Poly Pipe

1шт.

9

87558640

STRAINER ELEMENT

tank 16" basket

1шт.

10

84258218

GASKET

Lid To Collar

1шт.

11

21700

SCREW

SMS #10 - 13 x .75, FH A YZD

8шт.

12

47794421

ROPE

1/8" Nylon, Braided

1шт.
