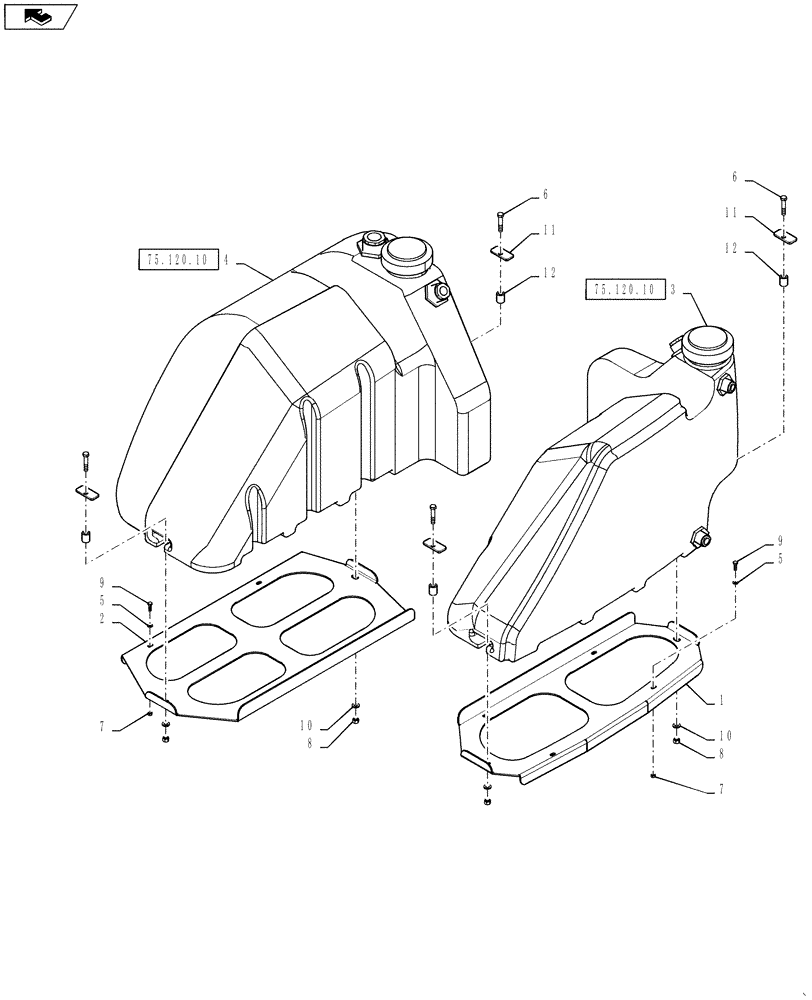

Запчасти Case IH 3230 (75.120.13[01]) - RINSE TANK, MOUNTING GROUP, BSN YCT033001 (75) - SOIL PREPARATION

1

87270428

MOUNTING PLATE

RINSE TANK, LH

1шт.

2

87270430

MOUNTING PLATE

RINSE TANK, RH

1шт.

3

87270431

TANK

Rinse, LH, With Fittings

1шт.

Refer to 75.120.10

1шт.

4

87270432

TANK

Rinse, RH, With Fittings

1шт.

Refer to 75.120.10

1шт.

5

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

6

86980426

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

4шт.

7

9991588

NUT,M8 x 1.25, Cl 8

8шт.

8

100038

NUT,M12 x 1.75, Cl 8

4шт.

9

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

8шт.

10

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

11

BN67652

PLATE

Tank Hold Down

4шт.

12

BN67653

BUSHING

TB, RD, bushing

4шт.
