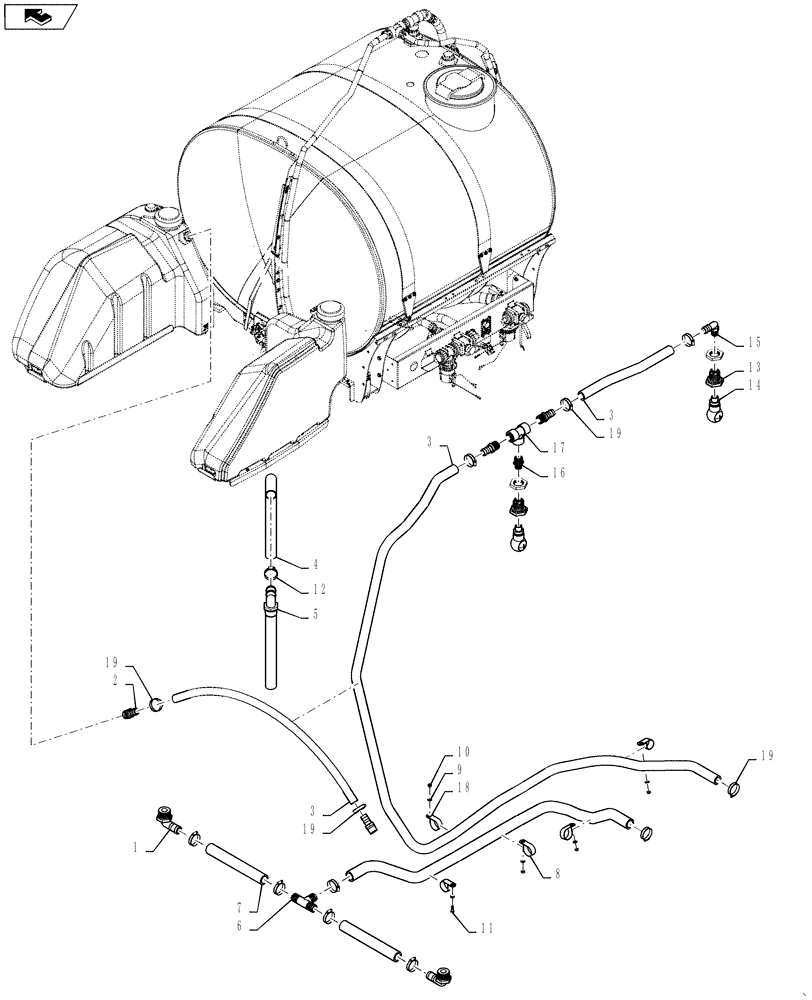

Запчасти Case IH 3230 (75.120.12[01]) - PLUMBING, RINSE TANK, BSN YCT033001 (75) - SOIL PREPARATION

1

BN308040

FITTING,1-1/2" Male Thread x 1-1/4" 90 Degree Hose Barb

1.5 NPT, 1.25 HB, 90º

2шт.

2

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

4шт.

3

BN53479

HOSE,1.00" ID BULK

EPDM Discharge

18.2шт.

4

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

1шт.

5

BN53842

HOSE,38.10 mm ID Bulk

Discharge

3.0шт.

6

BN317579

TEE

Hose Barb, 1 1/4"

1шт.

7

87271155

HOSE,1.25" ID

Suction, Standard

7.41шт.

8

515-24444

CLAMP,44.4mm ID, 11.9mm Bolt Hole, P Type

3шт.

9

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

5шт.

10

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

11

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

12

BN310448

HOSE CLAMP

#28, Stainless Steel

7шт.

13

406148A1

FITTING

bulkhead 3/4" dfpt c/w epdm gasket

2шт.

14

343509A1

JET

NOZZLE, Rinse (360) With Adapter

2шт.

15

BN73575

FITTING

Barb, 3/4" X 1" SHK x 90º

1шт.

16

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

1" x 3/4" Poly

1шт.

17

BN73629

TEE

1" Poly Pipe

1шт.

18

86639006

CLAMP,38.1mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

19

BN310447

HOSE CLAMP

#20,304 SS

6шт.
