(75.120.11[02]) - LH RINSE TANK, SN YCT033001 AND AFTER

Запчасти Case IH 3230 (75.120.11[02]) - LH RINSE TANK, SN YCT033001 AND AFTER (75) - SOIL PREPARATION

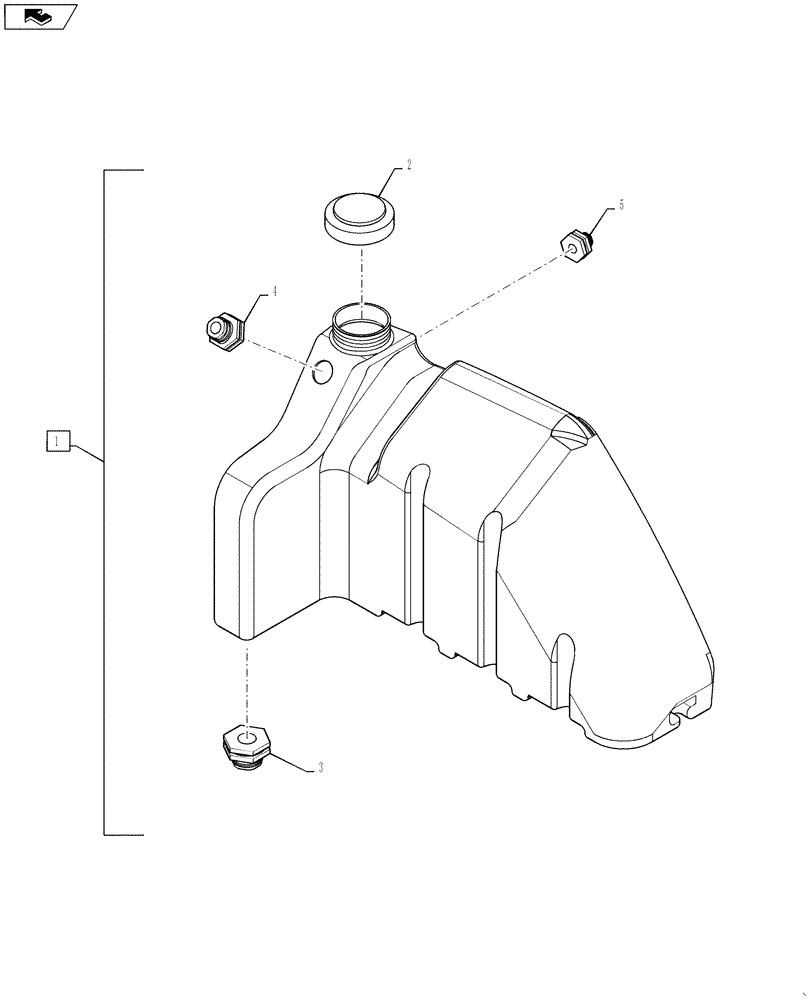

Схема запчастей Case IH 3230 - (75.120.11[02]) - LH RINSE TANK, SN YCT033001 AND AFTER (75) - SOIL PREPARATION
3
2
5
home
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84535867

TANK

Rinse, LH, With Fittings, Incl Ref 2 - 5

1шт.

2

BN314276

COVER

6.00, W/BREATHER

1шт.

3

BN73733

FITTING

1 1/2" Bulkhead

1шт.

4

BN2403685

BULKHEAD

Fitting, 1" MNPT

1шт.

5

BN311041

FITTING

3/4" NPT, Poly

1шт.
