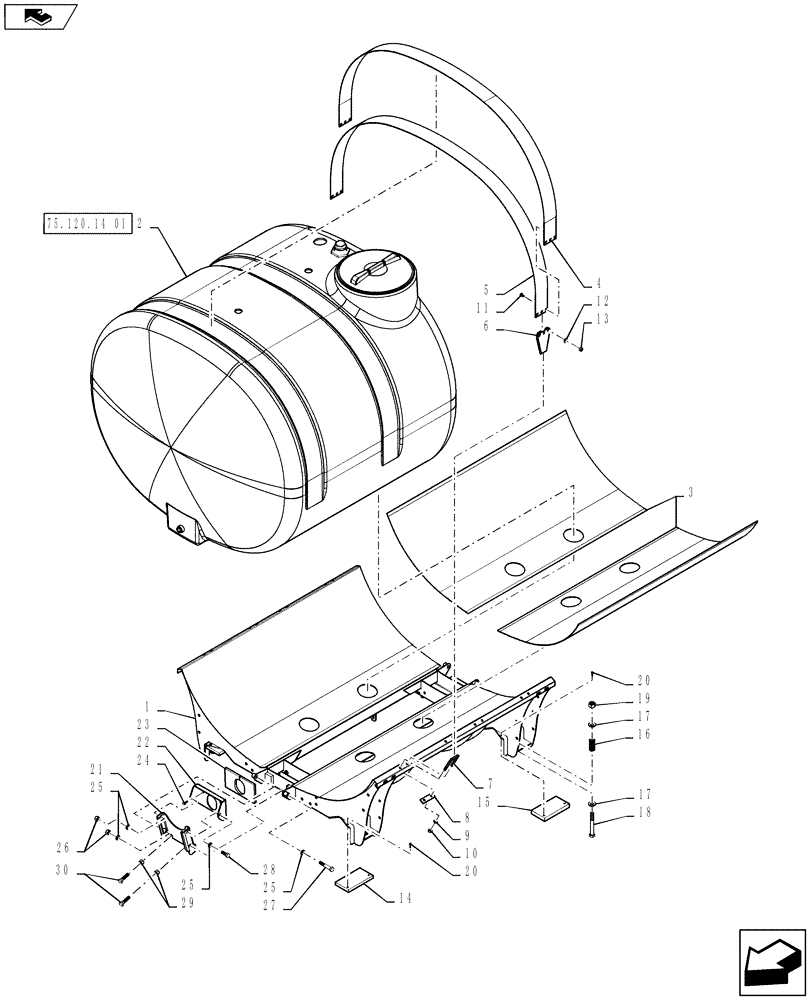

Запчасти Case IH 3230 (75.120.09) - TANK MOUNT, 800 GALLON POLY (75) - SOIL PREPARATION

1

87738720

SKID PLATE

800 Gallon Tank

1шт.

2

87470710

TANK

See Fig 75.120.14

1шт.

3

87745029

LINER

Tank Skid

2шт.

4

84151328

BAND

800 Gallon Poly Tank, Years: -01-NOV-09

2шт.

4

84277041

BAND

800 Gallon Poly Tank, Start Year: 01-NOV-09

2шт.

5

87745030

LINER

Tank Band

2шт.

6

84145375

ANCHOR

Tank Strap

4шт.

7

BN305434

U-BOLT

BOLT "U" 3/8 x 2 x 4.5

4шт.

8

84145619

ANCHOR

U-Bolt

4шт.

9

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

10

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

11

84226561

CARRIAGE BOLT

5/16"-18 x 3/4", SS

12шт.

12

BN50142

WASHER,5/16", Stainless Steel

12шт.

13

BN55361

NUT,5/16"-18, Nylon, Stainless

12шт.

14

87272750

PAD

Tank, 19 mm, With Holes

2шт.

15

87272751

PAD

Tank, 25 mm, With Holes

2шт.

16

BN312850

SPRING

1" ID x 4" Lg-Die

4шт.

17

87310608

WASHER,22mm ID x 44mm OD x 5mm Thk

22 x 44 x 5 mm, HDN, DOR

8шт.

18

87342000

BOLT,Hex, M20 x 160mm, Cl 10.9

M20 x 160 10.9

4шт.

19

87024336

NUT,M20 x 2.5, Cl 10

4шт.

20

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

8шт.

21

84156974

MOUNT

Tank Stop, For Poly Tank

2шт.

22

87745028

FOOT

Tank Stop

2шт.

23

84145593

STOP

Rubber, Tank

2шт.

24

BN50769

SCREW,Hex, #10 x 1/2"

#10 X .5, HH, AB

4шт.

25

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

17.5 x 30 x 4 mm, HDN, DOR

16шт.

26

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

8шт.

27

86980510

BOLT,Hex, M16 x 90mm, Cl 8.8

M16-2 x 90, HH, 8.8, DOR

4шт.

28

86980444

BOLT,Hex, M16 - 2 x 40mm, Cl 8.8, DOR

4шт.

29

86981470

NUT

M16, CL 10 DOR

4шт.

30

86980445

BOLT,Hex, M16 - 2 x 60mm, Cl 8.8, DOR

M16X60 CL8.8 DOR

4шт.
