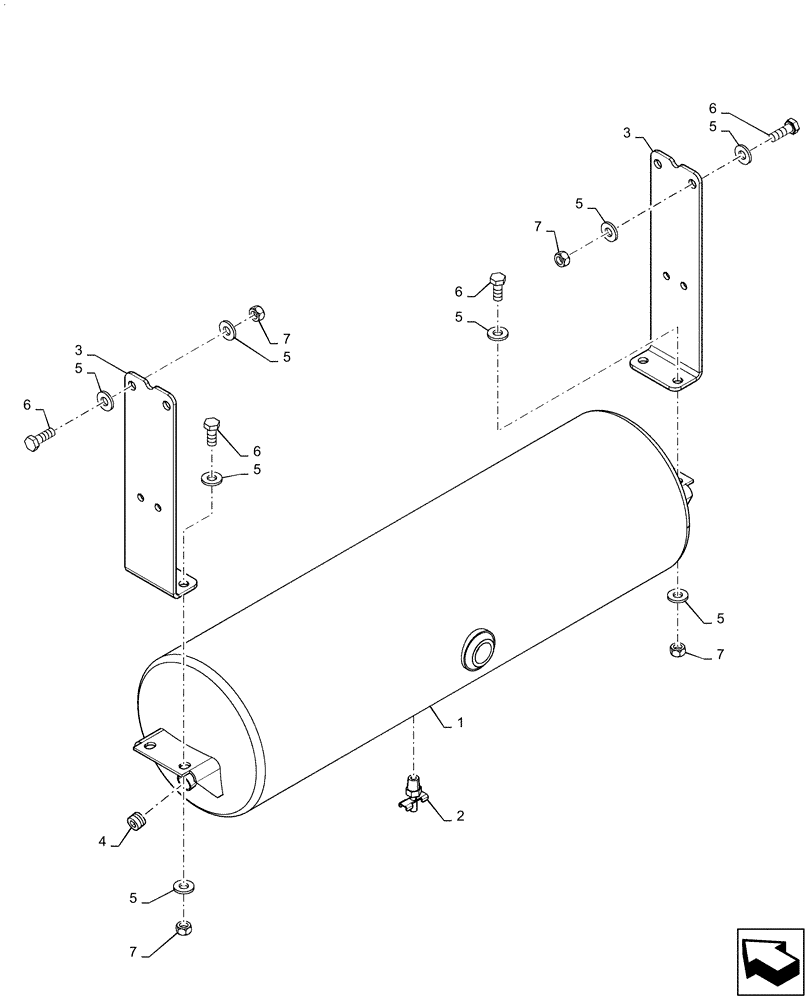

Запчасти Case IH 3230 (75.120.07) - AIR TANK GROUP (75) - SOIL PREPARATION

1

BN316553

AIR TANK

8" DIA X 32"

1шт.

2

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

Valve, 1/4" Weatherhead

1шт.

3

87268119

BRACKET, SUPPORTING

AIR TANK

2шт.

4

BN92391

PLUG

PIPE, 3/8" SOCKET HD

1шт.

5

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

16шт.

6

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

8шт.

7

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.
