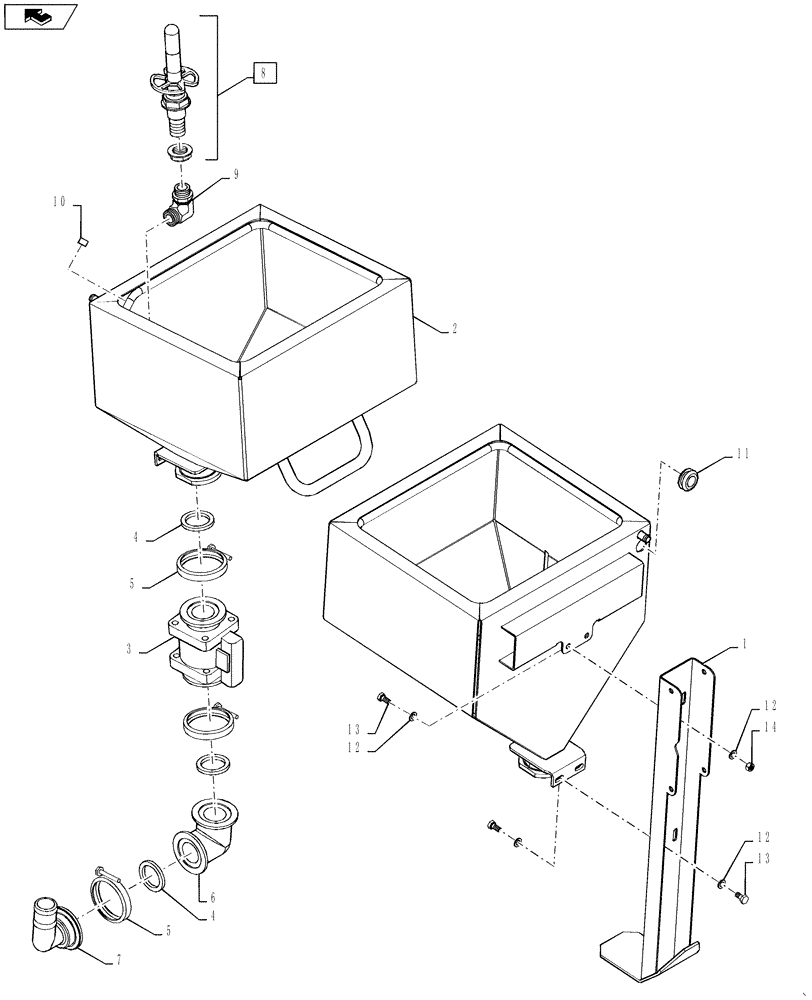

Запчасти Case IH 3230 (75.110.03) - TANK GROUP, W/LIQ PLUMBING (75) - SOIL PREPARATION

1

BN322941

BRACKET

MOUNT WLDMT, TANK

1шт.

2

BN320983

TANK

Inductor 2

1шт.

3

BN304328

VALVE,2" FP Valve w/C-Flng & T Handle

BALL, 2" FL, W/T HNDL

1шт.

4

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

3шт.

5

BN303199

CLAMP,2" Flange

2" Standard Flange

3шт.

6

405782A1

COUPLING,2" x 2" 90 Degree Short Flange

poly 90º 2" flange x 2" flange coupling, short

1шт.

7

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 1/2" Hose Barb, Poly

1шт.

8

BN310895

VALVE

INDUCTOR, JUG RINSE

1шт.

9

BN73511

FITTING

90° 1/2" Female NPT x 1/2" Male NPT

1шт.

10

BN311050

PLUG

Pipe, 1/8" poly hex

1шт.

12

BN85855

GROMMET

Lg, for 1/2" hose

1шт.

13

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

8шт.

14

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

15

9991588

NUT,M8 x 1.25, Cl 8

4шт.
