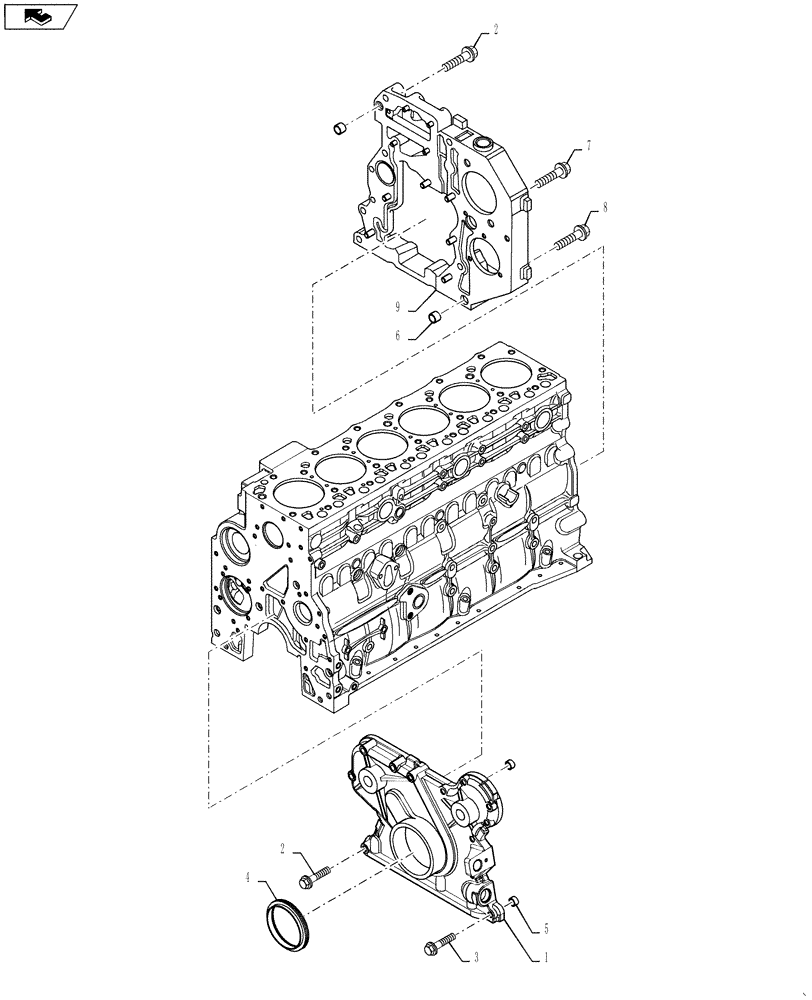

Запчасти Case IH 3230 (10.102.04) - GEAR COVER - FRONT & REAR (10) - ENGINE

1

4897026

COVER

Front Gear

1шт.

2

4899078

SCREW,Hex Flg, M8 x 1.25 x 45

9шт.

3

4899063

SCREW,Hex Flg, M8 x 1.25 x 30

8шт.

4

4890832

OIL SEAL,M70 x 100 x 12.5/16

1шт.

5

4891209

DOWEL,M13 x 8 L

2шт.

6

4899026

DOWEL,M18 x 10

2шт.

7

4899093

BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC

2шт.

7

4899073

SCREW,Hex Flg, M12 x 1.75 x 30

1шт.

8

4896939

SCREW,M10 x 1.5 x 50mm

3шт.

9

4899678

HOUSING

REAR

1шт.
