(55.440.26) - AIM COMMAND, BYPASS GROUP

Запчасти Case IH 3230 (55.440.26) - AIM COMMAND, BYPASS GROUP (55) - ELECTRICAL SYSTEMS

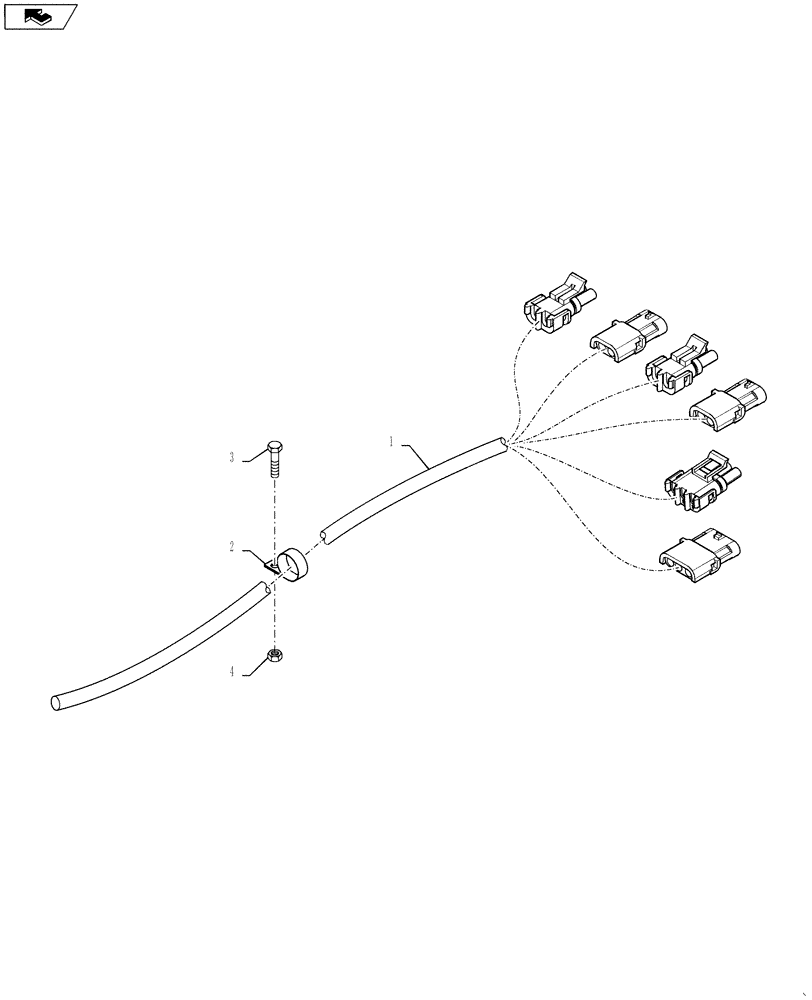

Схема запчастей Case IH 3230 - (55.440.26) - AIM COMMAND, BYPASS GROUP (55) - ELECTRICAL SYSTEMS
home
2
1
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN324107

MODULE

AIM, CMD, BY-PASS

1шт.

2

515-24444

CLAMP,44.4mm ID, 11.9mm Bolt Hole, P Type

1шт.

3

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

4

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

1шт.

Выбрано товаров: 0
