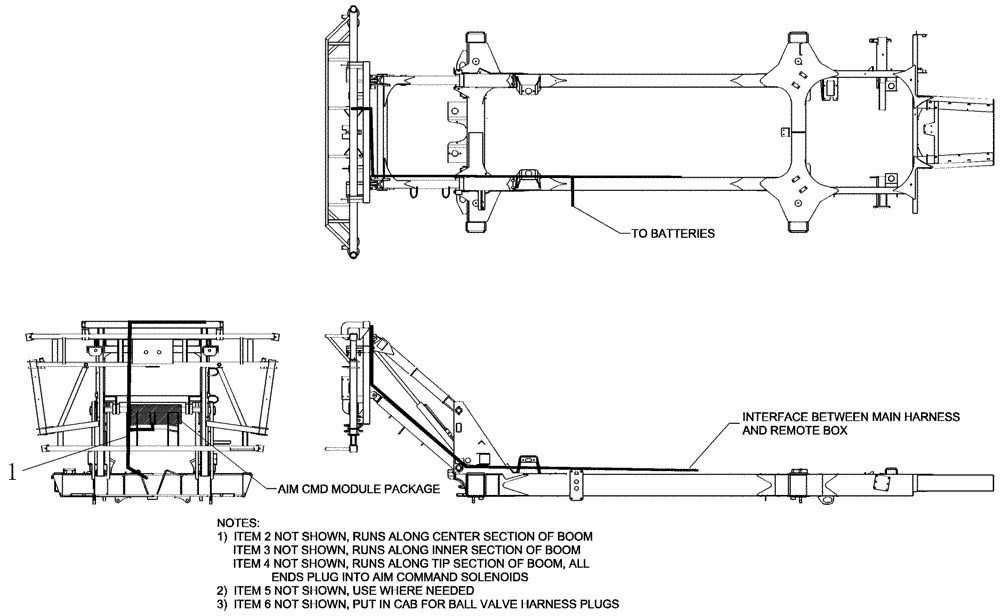

Запчасти Case IH 3230 (55.440.25) - AIM COMMAND, HARNESS GROUP (55) - ELECTRICAL SYSTEMS

1

87630216

HARNESS

Aim Command, Rear

1шт.

Refer to 55.100.06

1шт.

2

87586918

WIRE HARNESS

Aim Command, 5 Section, 90' Boom, Center Section, 6 Nozzle

1шт.

Refer to 55.100.09

1шт.

3

87586925

WIRE HARNESS

Aim Command, 5 Section, 90' Boom, Inner Section, 15 Nozzle

2шт.

Refer to 55.100.11

1шт.

4

87586923

WIRE HARNESS

Aim Command, 5-6 Section, 90' Boom, Outer Section, 9 Nozzle

2шт.

Refer to 55.100.10

1шт.

5

BN316014

HARNESS

Nozzle Alternator

1шт.

Not Shown

1шт.

6

344498A1

VALVE

group, B isolators

1шт.

Not Shown

1шт.
