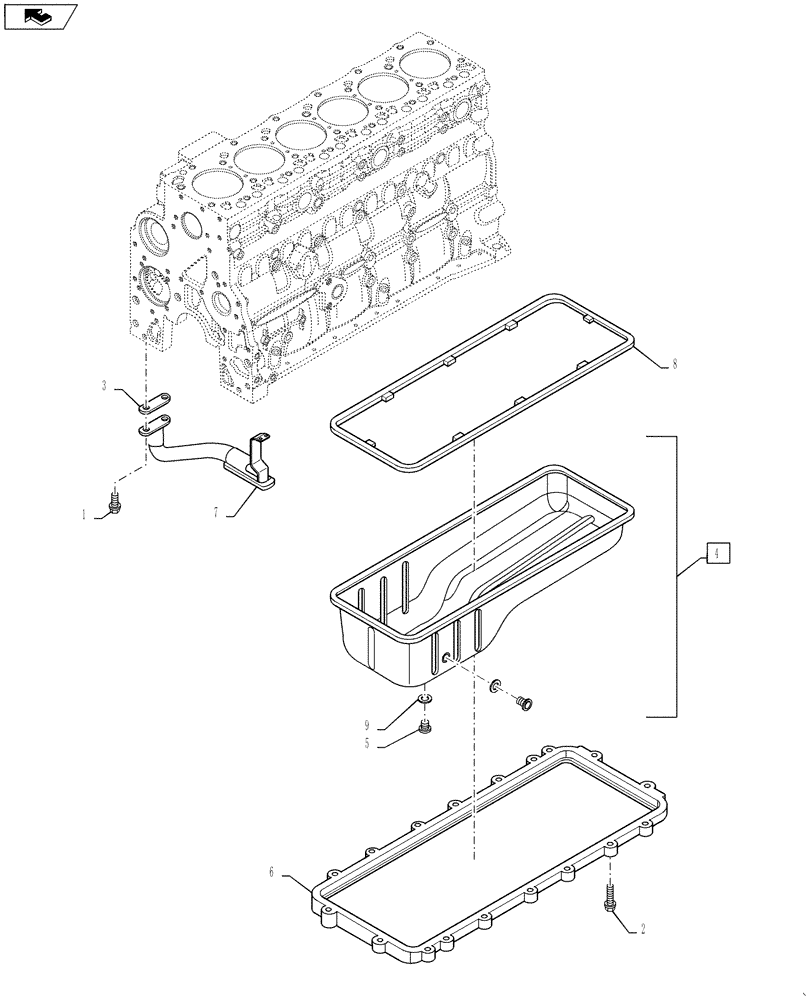

Запчасти Case IH 3230 (10.102.03) - OIL PUMP, PAN (10) - ENGINE

1

18138424

SCREW,Hex Flg, M8 x 1.25 x 20mm

2шт.

2

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

18шт.

3

4898301

GASKET,0.42mm Thk

1шт.

4

4898036

ENGINE OIL PAN

1шт.

Includes Refs. 5, 9

1шт.

5

4895577

PLUG

2шт.

6

4897858

SPACER

1шт.

7

4893940

PIPE

OIL SUCTION

1шт.

8

4897861

OIL PAN GASKET SET,17.3mm Thk

1шт.

9

2830546

SEALING WASHER

2шт.
