(55.440.14[01]) - SELF CENTERING, ELECTRICAL GROUP, BSN YBT029170

Запчасти Case IH 3230 (55.440.14[01]) - SELF CENTERING, ELECTRICAL GROUP, BSN YBT029170 (55) - ELECTRICAL SYSTEMS

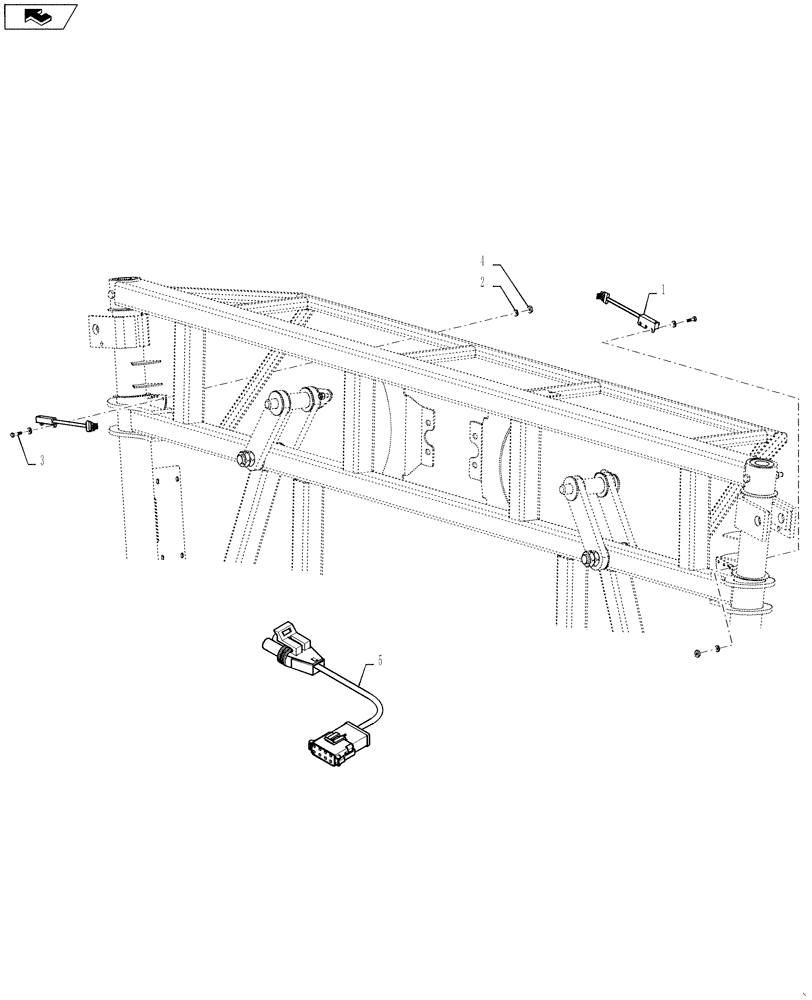

Схема запчастей Case IH 3230 - (55.440.14[01]) - SELF CENTERING, ELECTRICAL GROUP, BSN YBT029170 (55) - ELECTRICAL SYSTEMS
2
4
1
home
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87593274

SENSOR

Position, With Diode

2шт.

2

87529123

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

0.156 x 0.375 x 0.049 CST DOR

8шт.

3

87536486

SCREW,M4 x 0.7 x 16.01mm, Cl 12.9

Hex, M4 x 12, 8.8, Full Thd

4шт.

4

87344029

NUT,Prev Torque, M4, 0.7 Pitch, Cl 8, DOR

4шт.

5

87577369

WIRE HARNESS

GND

2шт.

Выбрано товаров: 5
