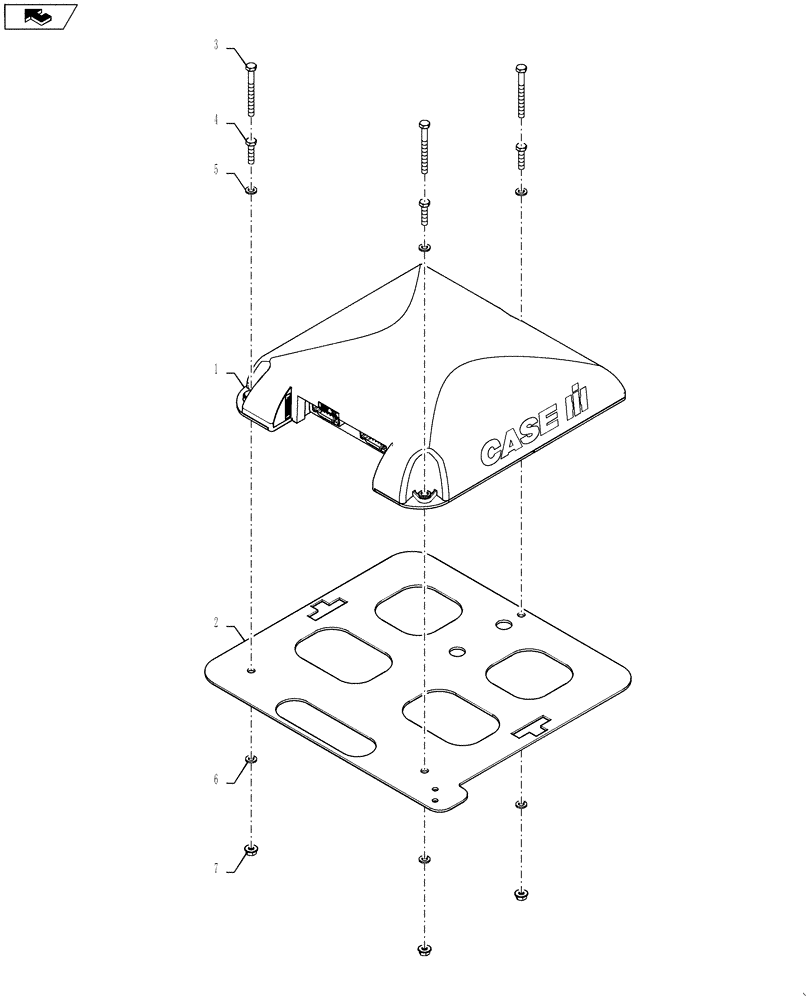

Запчасти Case IH 3230 (55.440.11[01]) - PACKAGE, GPS RECEIVER, AFS262 WAAS/EGNOS/VBS (55) - ELECTRICAL SYSTEMS

1

84148119

MODULE

GPS RECEIVER, AFS262 WAAS/EGNOS/VBS

1шт.

1

84574271R

REMAN ELECT CONTROL

3230 PATRIOT SPRAYER, GPS RECEIVER, AFS262 WAAS/EGNOS/VBS (7/09-), Reman for New PN 84148119

1шт.

1

84574271C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

87496985

MOUNTING PLATE

1шт.

3

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

3шт.

4

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

3шт.

5

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

6

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

3шт.

7

86511444

FLANGE NUT,Hex, M6 x 1

3шт.
