(55.440.06[02]) - ACCUBOOM UPDATE KIT, BSN YAT028471

Запчасти Case IH 3230 (55.440.06[02]) - ACCUBOOM UPDATE KIT, BSN YAT028471 (55) - ELECTRICAL SYSTEMS

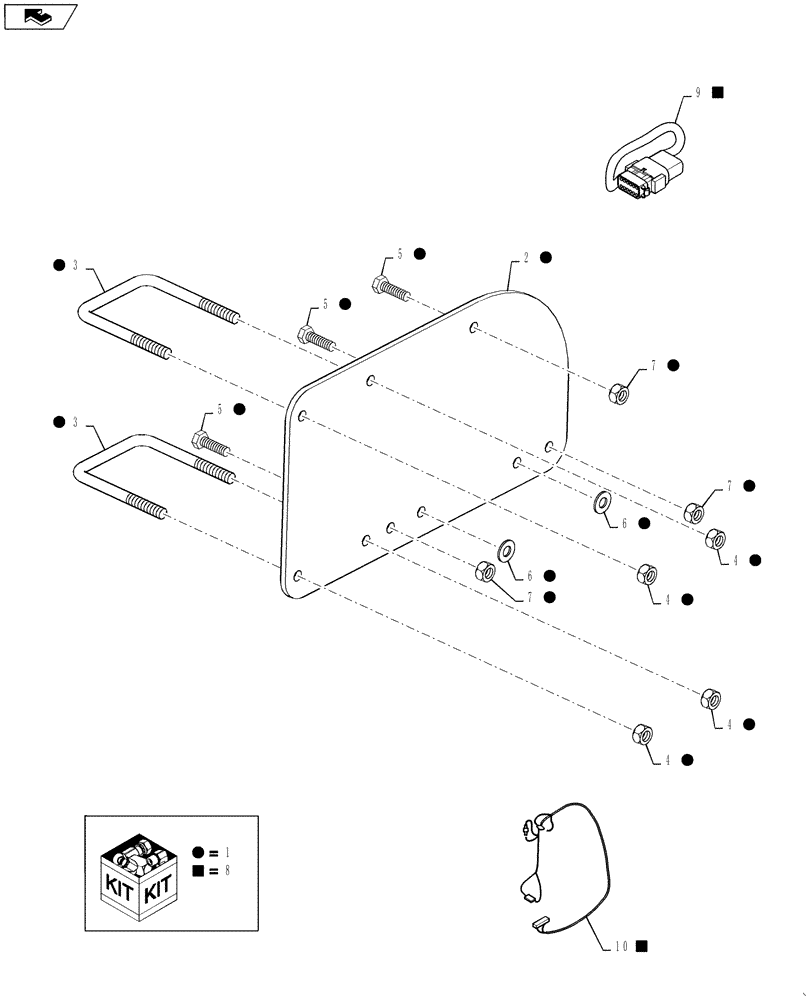

Схема запчастей Case IH 3230 - (55.440.06[02]) - ACCUBOOM UPDATE KIT, BSN YAT028471 (55) - ELECTRICAL SYSTEMS
1
7
1
1
7
1
3
3
9
4
4
5
6
5
8
1
8
1
1
5
8
1
8
1
1
1
2
1
1
1
7
home
6
1
4
1
1
4
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84368826

SERVICE KIT

Accuboom Mount Update Kit, Includes Ref 2 thru 8

1шт.

2

87484395

MOUNT

Nodes

1шт.

3

BN313492

U-BOLT

5/16 X 2.56 ID

2шт.

4

87343959

NUT,5/16" - 18, GR B, DOR

4шт.

5

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

3шт.

6

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

3шт.

7

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

3шт.

8

84366893

SERVICE KIT

Accuboom, Harness And Manual Kit, Includes Ref 9 and 10

1шт.

9

84366896

HARNESS

Accuboom Rear Extension, Not Shown

1шт.

10

84366900

HARNESS

Fence Row Adaptor, Not Shown

1шт.
