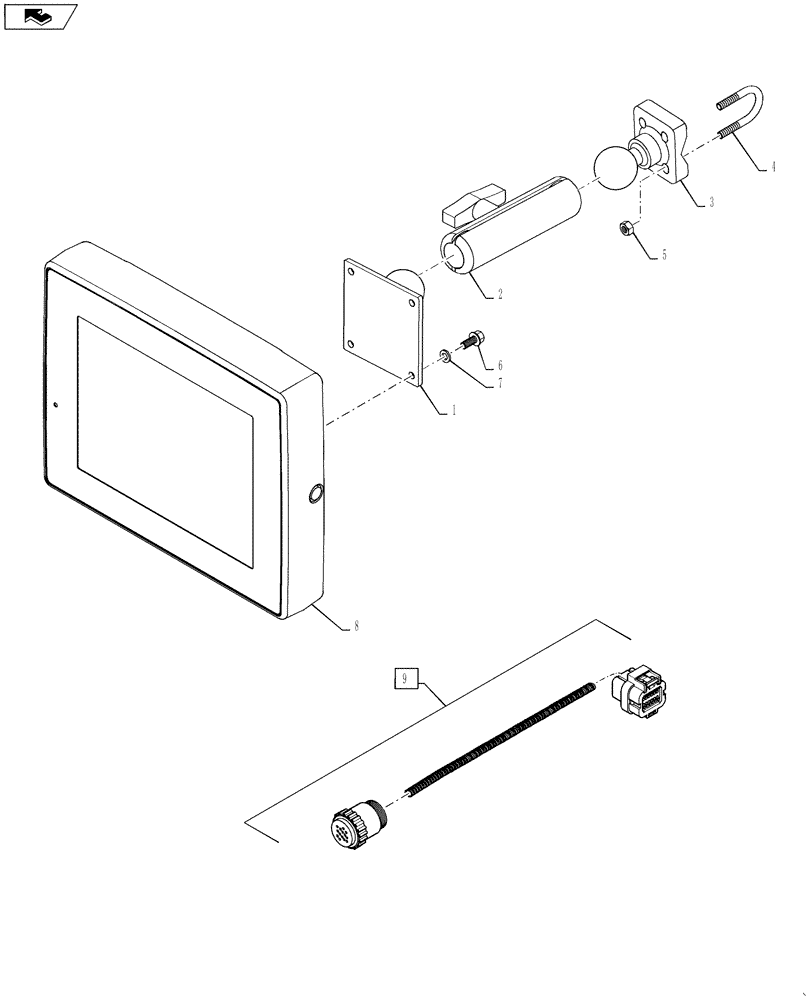

Запчасти Case IH 3230 (55.440.05[01]) - PRO 600 CONTROL DISPLAY, USED BSN YBT031001 (55) - ELECTRICAL SYSTEMS

1

87386398

SUPPORTING ARM

Ram Square Mount, 75 x 75

1шт.

1

87386396

MOUNT

Mount Color Display, Start Year: 01-JUN-09

1шт.

AFS 600 PRO group

1шт.

2

87284257

ARM

ARM, DOUBLE SOCKET, 1.5

1шт.

3

87284259

PLATE

Base Plate, Double U-bolt

1шт.

4

435430A1

U-BOLT

ur 1/4" x 1" w x 1 3/4" d 1" thread

2шт.

5

7770

NUT,Hex, 1/4 - 20, Cl 5

7шт.

6

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

7

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

8

87668597

CONTROL MONITOR

black touchscreen

1шт.

8

87385125R

REMAN-ELECT MONITOR

Reman-Monitor 3230 Patriot Sprayer, Reman For New P/N 87668597

1шт.

8

87385125C

CORE-MONITOR

Return Part Number

1шт.

8

87668610

DISPLAY

field service black, Start Year: 01-JUN-09

1шт.

AFS 600 PRO group

1шт.

9

84189330

WIRE HARNESS

AFS 600 DISPLAY, Start Year: 01-JUN-09

1шт.

AFS 600 PRO group

1шт.
