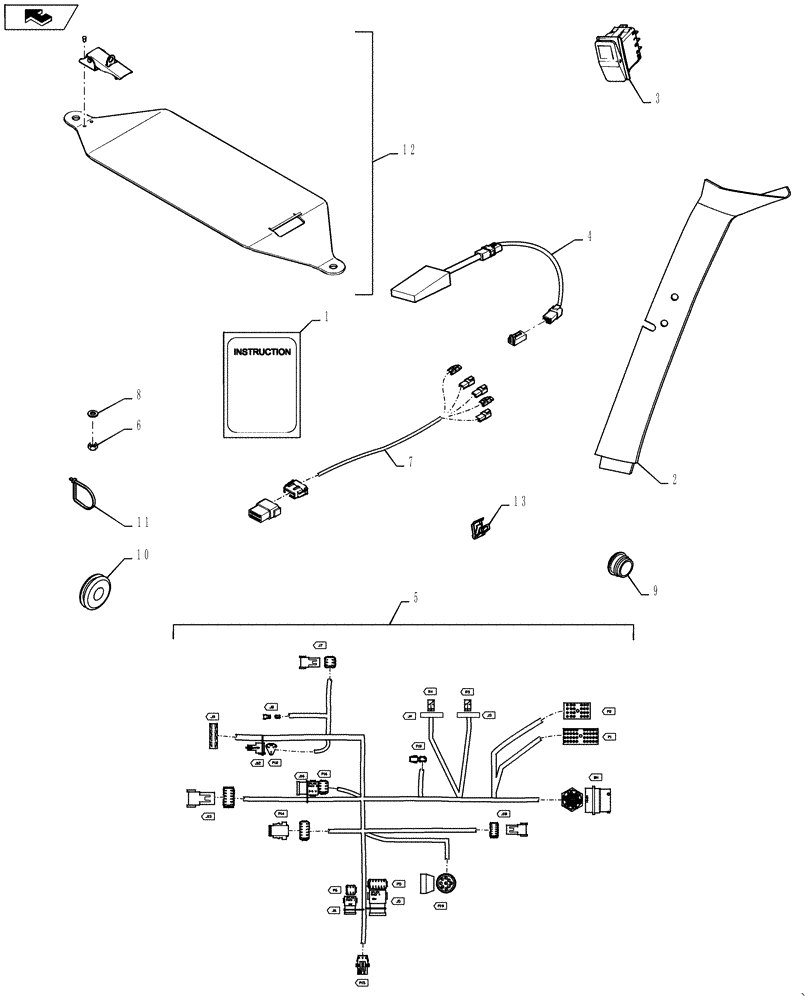

Запчасти Case IH 3230 (55.440.03) - ACCUGUIDE ELECTRICAL GROUP, CAB (55) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

Upper Roof Panel, Rework for autoguidance

1шт.

2

87542375

TRIM PANEL

RH C-Post

1шт.

3

87711789

AUTO GUIDANCE DISENG

1шт.

4

87646096

SWITCH ASSY

REMOTE, W/CONN

1шт.

5

87648173

HARNESS

CCH Spray Cab Inside Autoguidance

1шт.

6

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

7

87544759

HARNESS

GPS Antenna Receiver

1шт.

8

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

2шт.

9

87649885

PLUG

Floor, Autoguidance

1шт.

10

87330628

GROMMET

.750 ID X 1.625 GRV CA DIAG SPLT

1шт.

11

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

3шт.

12

87552885

BRACKET

Autoguidance

1шт.

13

278316A2

CLIP

retainer

2шт.
