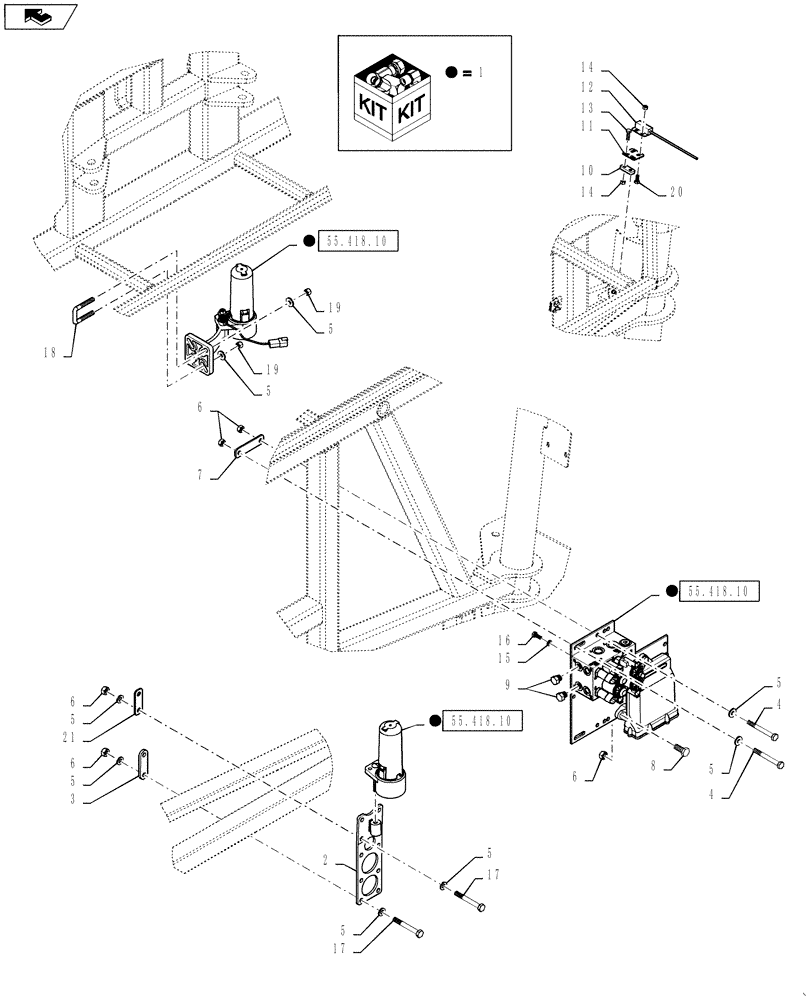

Запчасти Case IH 3230 (55.418.07[03]) - AUTOBOOM MOUNTING PARTS, 90/100, BOOM LEVEL AND HEIGHT CONTROL, SN YBT031929 AND AFTER (55) - ELECTRICAL SYSTEMS

1

47545007

CONTROLLER

DIA Kit, Autoboom Control, 90'/100', Includes Control Node, Hydraulic Valve, Harnesses, and Sensors

1шт.

See Fig 55.418.10 For Service Parts Breakdown

1шт.

2

47593329

MOUNT

Tall Sensor Mount

2шт.

3

BN308039

PLATE

Spacer

4шт.

4

86980409

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

4шт.

5

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

6шт.

6

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

23шт.

7

87620862

PLATE

Backer, 2-1/2" Tube

2шт.

8

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

9

BN446048

PLUG

9/16" -18 ORB

2шт.

10

84476044

SPACER

Position Sensor, Red

2шт.

11

84476037

SUPPORT

Position Sensor, Red

2шт.

12

BN315498

SWITCH

Proximity Sensor, With Diode

2шт.

13

86980359

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

14

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

8шт.

15

80681

LOCK WASHER,5/16"

4шт.

16

87342632

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

17

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

16шт.

18

BN67284

U-BOLT

3/8-16, Square Bend, 1.25" ID x 2.75" Long

2шт.

19

87343974

NUT,Prev Torque, 3/8" - 16, Gr C, DOR

4шт.

20

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

21

87628243

PLATE

Backer, 1-1/2" Tube, Sensor Mount

4шт.
