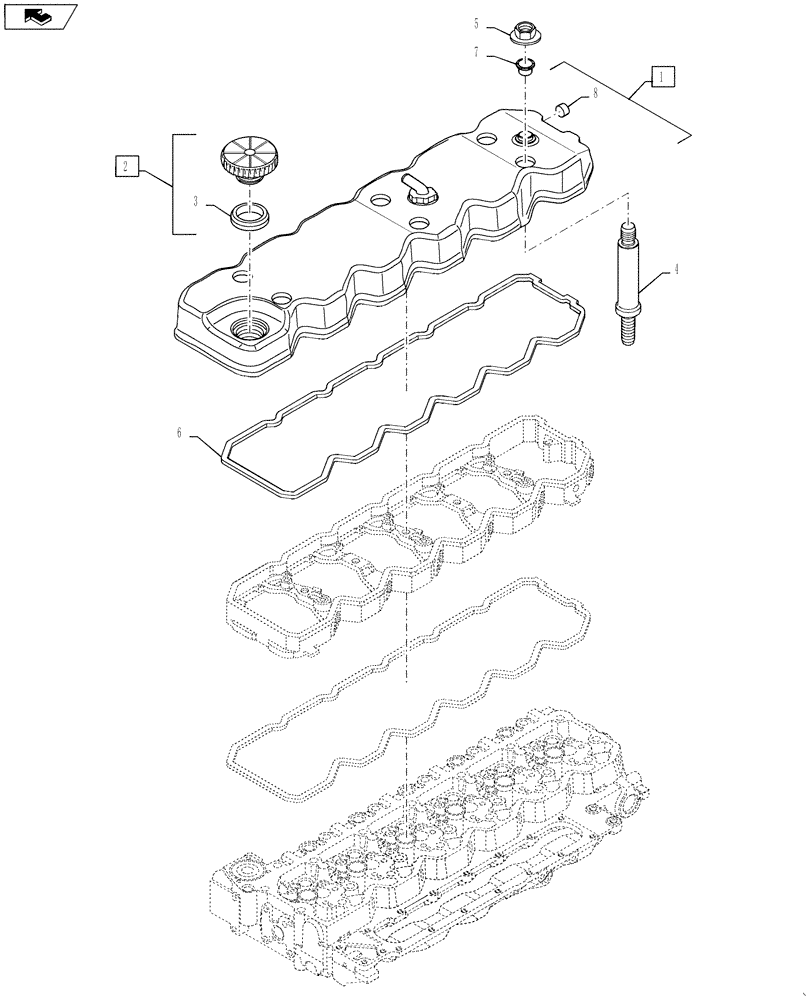

Запчасти Case IH 3230 (10.101.02[01]) - ENGINE CYLINDER HEAD - COVERS (10) - ENGINE

1

2853857

VALVE COVER

See 10.101.02[02] For Breather Parts

1шт.

Includes Ref. 8

1шт.

2

2852773

CAP

INTRODUCTION

1шт.

3

2852774

GASKET,38mm ID x 51mm OD x 8mm Thk

CAP

1шт.

4

4896991

BOLT

6шт.

4

2854375

STUD

ALTERNATIVE

6шт.

5

4893936

FLANGE NUT,Hex, M13, RH Thd, Cl 9.8

M8 X 1.25

6шт.

6

2853784

GASKET,10.5mm Thk

1шт.

7

4899239

ISOLATOR,29mm OD x 13mm L

6шт.

8

4898283

PLUG,Female

IF USED

1шт.
