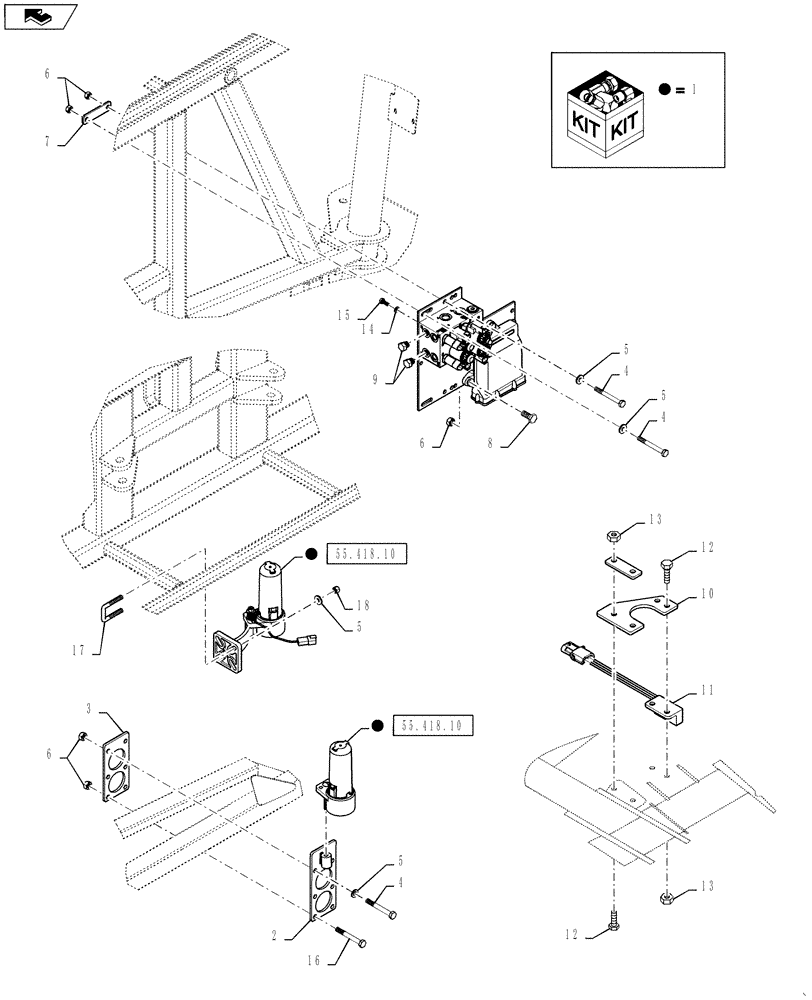

Запчасти Case IH 3230 (55.418.07[01]) - AUTOBOOM, ULTRAGLIDE, 90 AND 100, BOOM LEVEL AND HEIGHT CONTROL (55) - ELECTRICAL SYSTEMS

1

84247473

KIT

Kit, Autoboom, 90' and 100', Serial Range: -YAT027064

1шт.

1

47545007

CONTROLLER

DIA Kit, Autoboom, 90' and 100', Start Serial: YAT027065

1шт.

2

84255690

BRACKET

Sensor Mount

2шт.

3

84256576

BRACKET

Base, Sensor Mount

2шт.

4

86980409

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

12шт.

5

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

14шт.

6

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

19шт.

7

87620862

PLATE

Backer, 2.5" Tube

2шт.

8

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

9

BN446048

PLUG

HEX, ORB 9/16-18 3/8 Tube

2шт.

10

87723957

BASE PLATE

Proximity Switch

2шт.

11

BN315498

SWITCH

Proximity

2шт.

12

86980359

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

13

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

14

80681

LOCK WASHER,5/16"

4шт.

15

87342632

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

16

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

17

BN67284

U-BOLT

3/8--SQ BND-1.25ID

2шт.

18

87343974

NUT,Prev Torque, 3/8" - 16, Gr C, DOR

4шт.
