Запчасти Case IH 3230 (55.418.06[02]) - AUTOBOOM, ULTRAGLIDE, 90 AND 100, BOOM LEVEL ONLY (55) - ELECTRICAL SYSTEMS

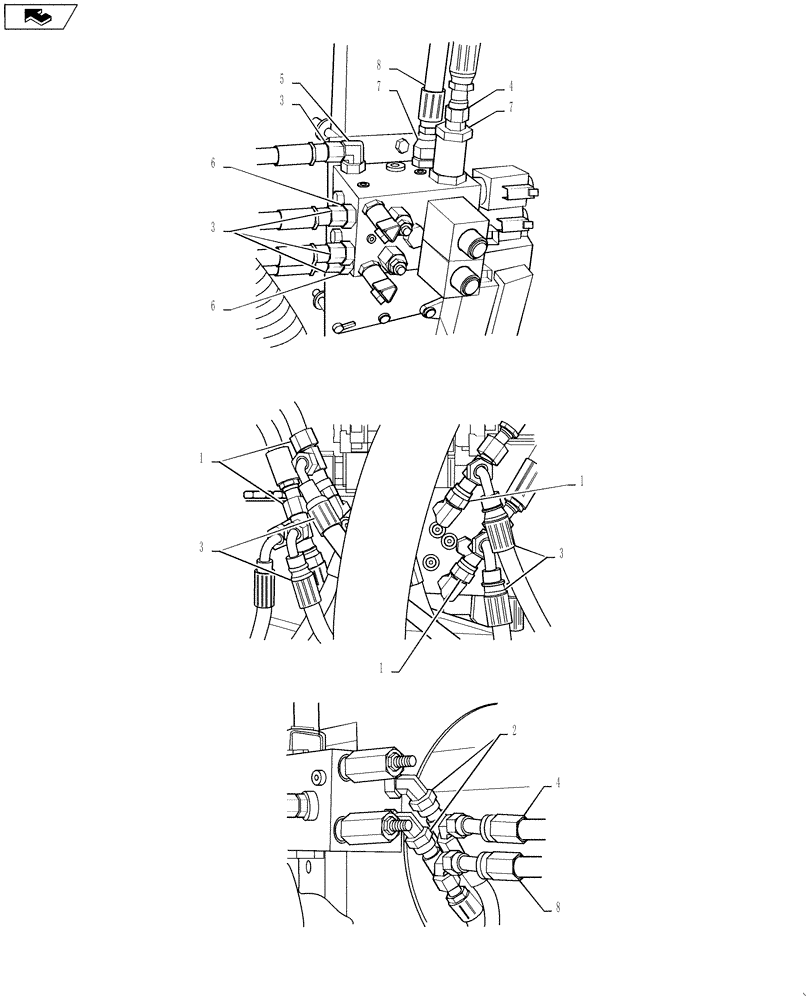

Схема запчастей Case IH 3230 - (55.418.06[02]) - AUTOBOOM, ULTRAGLIDE, 90 AND 100, BOOM LEVEL ONLY (55) - ELECTRICAL SYSTEMS
2
home
3
3
5
7
8
1
8
1
4
6
1
4
3
7
3
6

Артикул

Название

Примечание

Количество

1

BN302435

TEE

11/16 -16 ORFS x 11/16 -16 ORFS Swivel

4шт.

2

BN302436

TEE

13/16 -16 ORFS x 13/16 -16 ORFS Swivel

2шт.

3

342591A1

HOSE ASSY.

6 x 40"

4шт.

4

87487132

HOSE ASSY.

8 x 813 mm

1шт.

5

BN302554

FITTING

11/16-16 ORFS x 3/4-16 ORB x 90 Deg, Service with O-rings 128825 & 9993141

2шт.

6

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

2шт.

7

BN302650

FITTING

13/16 -16 ORFS x 3/4 -16 ORB

2шт.

8

87487133

HOSE ASSY.

8 x 864 mm

1шт.

Выбрано товаров: 8
