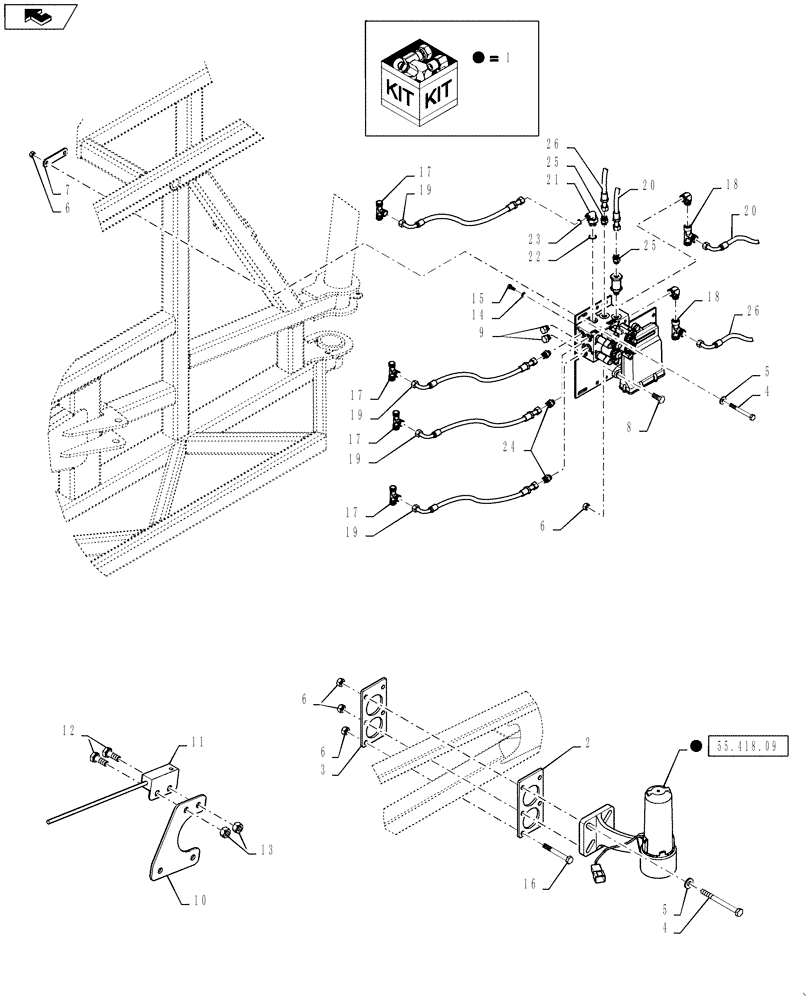

Запчасти Case IH 3230 (55.418.06[01]) - AUTOBOOM, ULTRAGLIDE, 90 AND 100, BOOM LEVEL ONLY (55) - ELECTRICAL SYSTEMS

1

NSS

NOT SOLD SEPARAT

AUTOBOOM, Hight Control

1шт.

Refer to 55.418.08

1шт.

2

84255690

BRACKET

Sensor Mount

2шт.

3

84256576

BRACKET

Sensor Mount Base

2шт.

4

86980409

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

12шт.

5

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

10шт.

6

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

19шт.

7

87620862

PLATE

Backer, 2 1/2" Tube

2шт.

8

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

9

BN446048

PLUG

HEX, ORING, -6, 9/16-18 PLATE

2шт.

10

87723957

BASE PLATE

PROXIMITY, SWITCH

2шт.

11

BN315498

SWITCH

POSITION SENSOR - W/DIODE

2шт.

12

86980359

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

13

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

14

80681

LOCK WASHER,5/16"

4шт.

15

86512037

BOLT,Hex, 5/16" - 24 x 3/4", Gr 8, Full Thd

5/16-24 X 3/4 FULL GR8

4шт.

16

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

17

BN302435

TEE

11/16 -16 ORFS x 11/16 -16 ORFS Swivel

4шт.

18

BN302436

TEE

13/16 -16 ORFS x 13/16 -16 ORFS Swivel

2шт.

19

342591A1

HOSE ASSY.

6 x 40"

4шт.

20

87487132

HOSE ASSY.

8 x 813 mm

1шт.

21

BN302554

FITTING

11/16-16 ORFS x 3/4-16 ORB x 90 Deg

2шт.

22

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

2шт.

23

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

24

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

2шт.

25

BN302650

FITTING

13/16 -16 ORFS x 3/4 -16 ORB

2шт.

26

87487133

HOSE ASSY.

8 x 864 mm

1шт.
