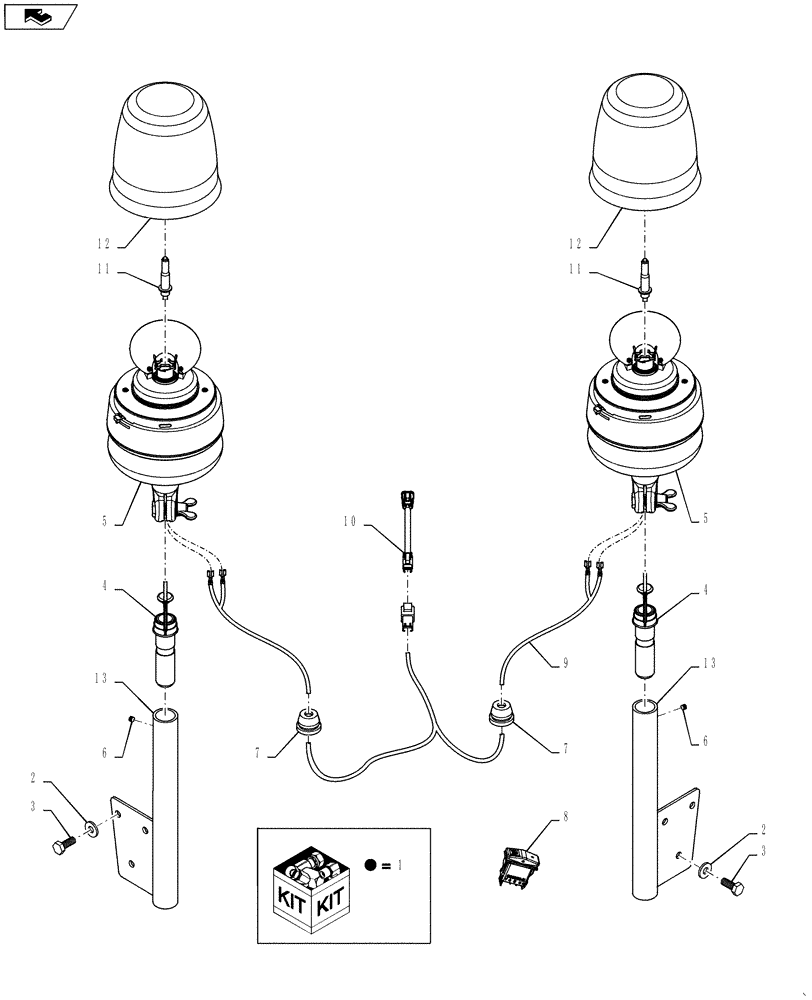

Запчасти Case IH 3230 (55.404.11[02]) - DUAL BEACON LIGHT, SN YCT032160 AND AFTER (55) - ELECTRICAL SYSTEMS

1

84518849

SERVICE KIT

Dual Beacon Light, Includes Ref 1 - 12

1шт.

2

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

6шт.

3

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

4

244106A1

ELEC CONNECTOR

Beacon Adaptor

2шт.

5

84337818

BEACON

Light

2шт.

6

86639305

SET SCREW,M6 x 6mm

2шт.

7

182045A1

GROMMET

Split .57 od x .394 id

2шт.

8

87414325

SWITCH

Beacon Light

1шт.

9

84250861

HARNESS

Dual Beacon

1шт.

10

84526646

WIRE HARNESS

Adaptor, DT - DTM

1шт.

11

86616248

BULB,H1, 12V, 55W

Beacon

2шт.

12

84344644

LENS

Beacon, Amber

2шт.

13

84519474

MOUNT

Beacon Light

2шт.
