Запчасти Case IH 3230 (55.404.10[02]) - SINGLE BEACON LIGHT, SN YCT032160 AND AFTER (55) - ELECTRICAL SYSTEMS

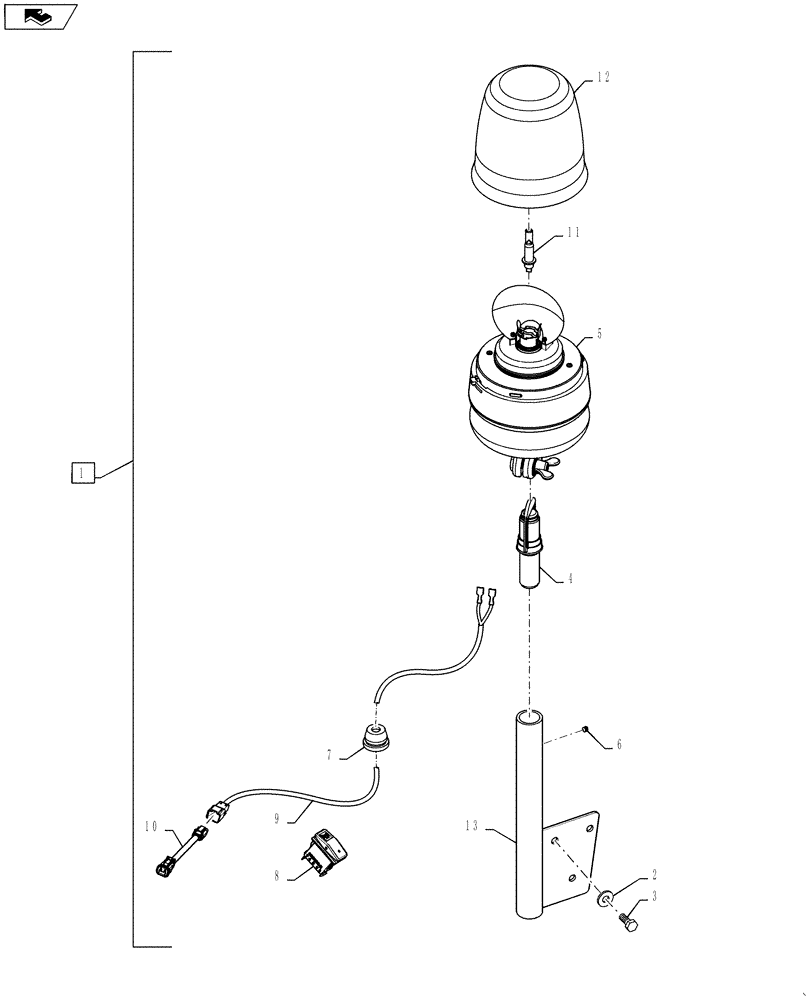

Схема запчастей Case IH 3230 - (55.404.10[02]) - SINGLE BEACON LIGHT, SN YCT032160 AND AFTER (55) - ELECTRICAL SYSTEMS
13
8
10
3
2
4
7
6
5
1
home
11
9
12

Артикул

Название

Примечание

Количество

1

84518850

SERVICE KIT

Single Beacon Light, Includes Ref 2 - 13

1шт.

2

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

3шт.

3

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

4

244106A1

ELEC CONNECTOR

Beacon Adaptor

1шт.

5

84337818

BEACON

Light

1шт.

6

86639305

SET SCREW,M6 x 6mm

1шт.

7

182045A1

GROMMET

Split .57 od x .394 id

1шт.

8

87414325

SWITCH

Beacon Light

1шт.

9

84273302

WIRE HARNESS

Single Beacon

1шт.

10

84594549

WIRE HARNESS

Adaptor, DT - DTM

1шт.

11

86616248

BULB,H1, 12V, 55W

Beacon

1шт.

12

84344644

LENS

Beacon, Amber

1шт.

13

84519474

MOUNT

Beacon Light

1шт.

Выбрано товаров: 13
