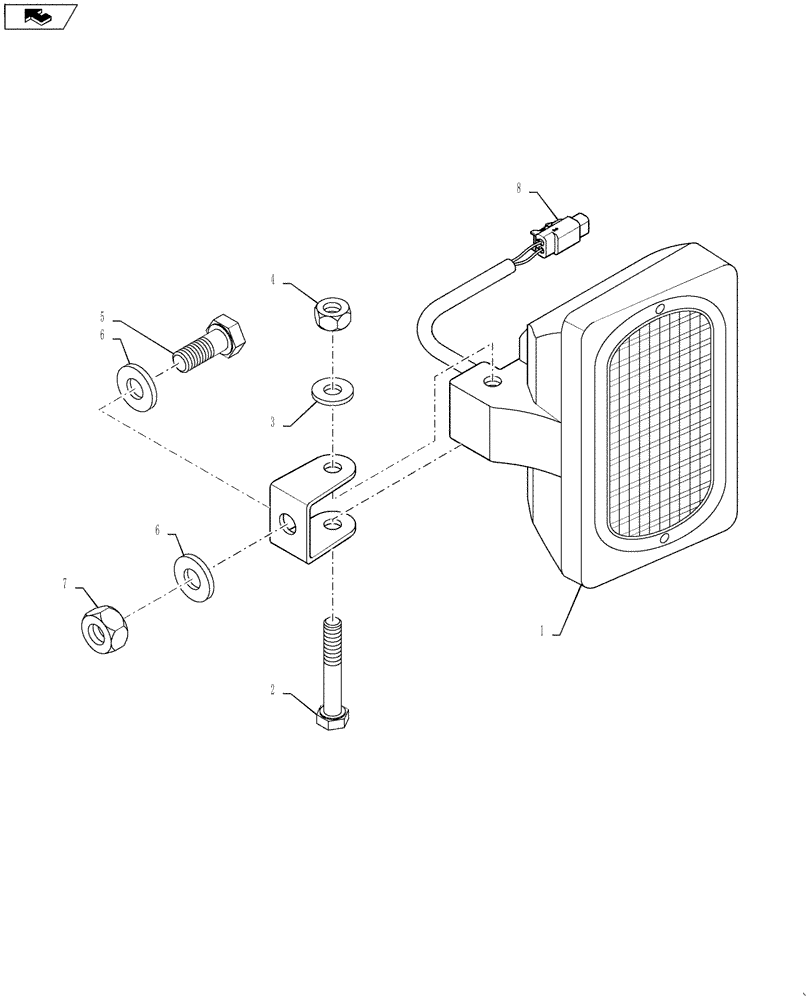

Запчасти Case IH 3230 (55.404.09) - FLOOD LIGHTING ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

87658381

WORK LAMP

Assembly

1шт.

Includes 87658393, 92242C2, 87658392, 87658412

1шт.

2

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

3

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

1шт.

4

9991588

NUT,M8 x 1.25, Cl 8

1шт.

5

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

6

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

7

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

1шт.

8

222135A1

CONNECTOR, ELEC

CONNECTOR

1шт.
