(55.404.08) - LIGHT GROUP, MIDSHIP

Запчасти Case IH 3230 (55.404.08) - LIGHT GROUP, MIDSHIP (55) - ELECTRICAL SYSTEMS

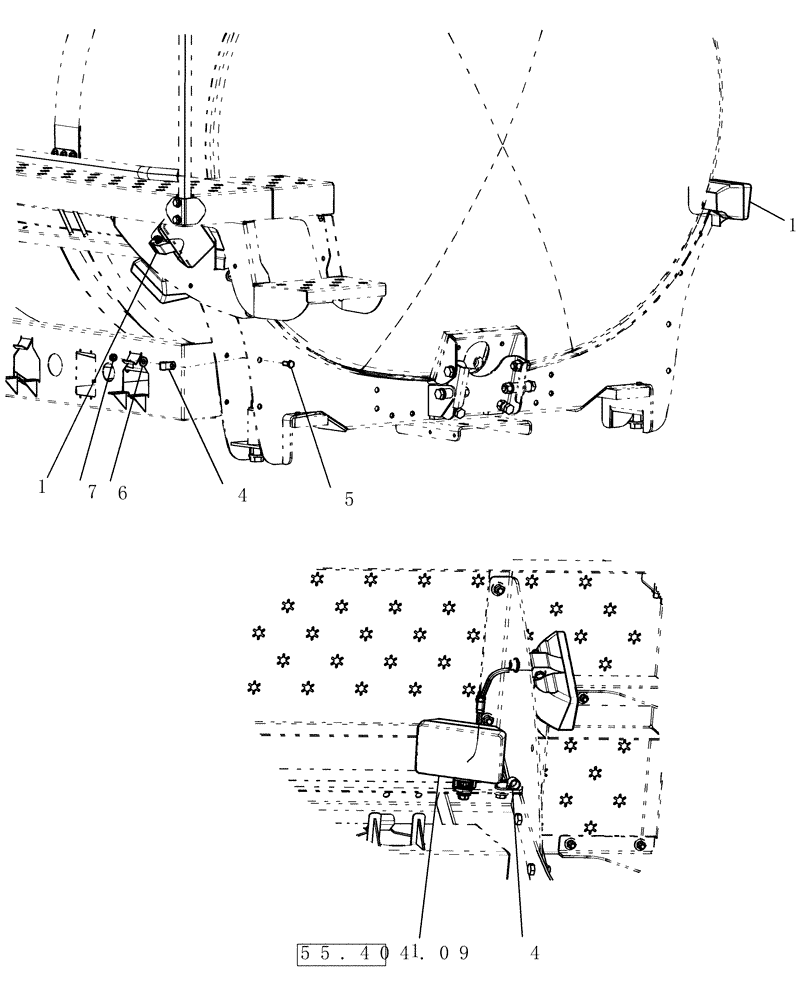

Схема запчастей Case IH 3230 - (55.404.08) - LIGHT GROUP, MIDSHIP (55) - ELECTRICAL SYSTEMS
1
1
1
6
4
7
55.404.09
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87658615

LAMP

Flood, Assembly

1шт.

Refer to 55.404.09

1шт.

2

87270406

WIRE HARNESS

Midship, Worklights, Not Shown

1шт.

3

87270252

WIRE HARNESS

Boom Lights, Not Shown

1шт.

4

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

5

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

6

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

7

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

1шт.
