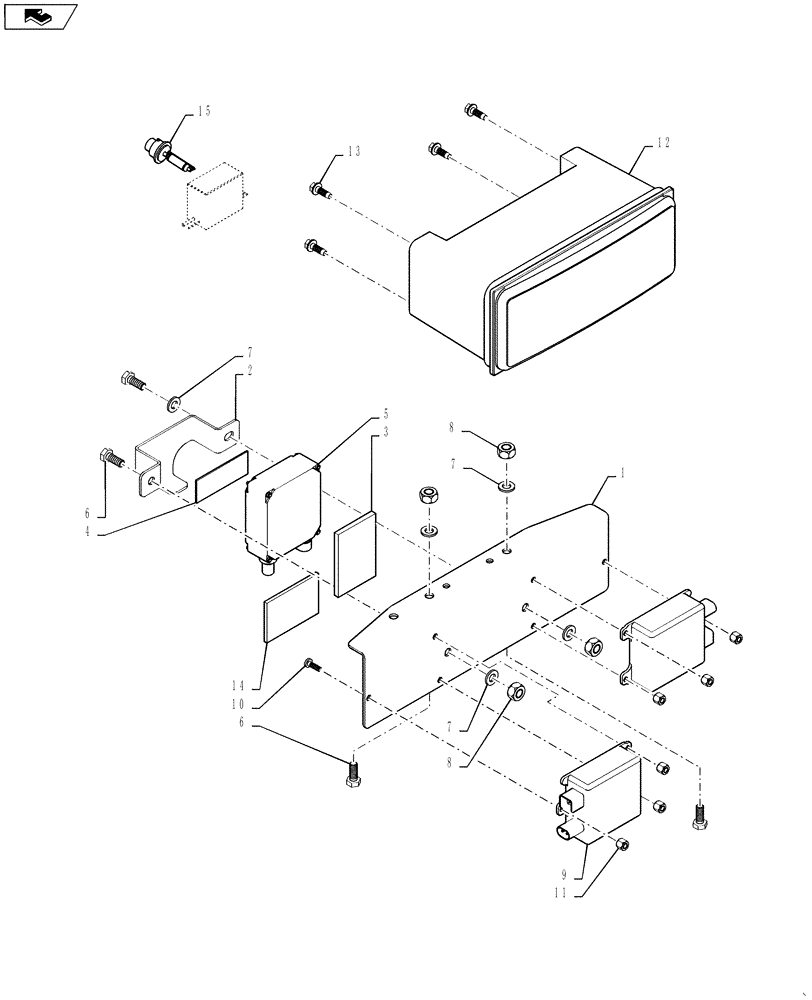

Запчасти Case IH 3230 (55.404.06) - LIGHT GROUP, HID, FRONT (55) - ELECTRICAL SYSTEMS

1

47541053

MOUNT

HID BALLAST

1шт.

2

333645A1

CLAMP

HID ballast hold down

1шт.

3

333643A1

GASKET

foam HID ballast

1шт.

4

333644A1

GASKET

foam HID ballast hold down

1шт.

5

322332A1

BALLAST

light, center HID

1шт.

6

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

7

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

5шт.

8

9991588

NUT,M8 x 1.25, Cl 8

4шт.

9

47540429

BALLAST

HID, 35W/12V D2S/D2R

2шт.

10

87343600

SCREW,Phil Pan Hd, M5 x 16mm, Cl 4.8, Full Thd

6шт.

11

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

6шт.

12

232455A2

WORK LAMP,HID, 12V, 35W, Clear

center, HID - Includes Bulb (NSS due to cost)

1шт.

13

86625224

SELF-TAP SCREW,HWH, 1/4" - 20 x 3/4"

Hex Wash Hd, 1/4"-20 x 3/4"

4шт.

14

NSS

NOT SOLD SEPARAT

DUAL LOCK

4шт.

15

47540431

BULB,HID

HID WITH HARNESS

2шт.
