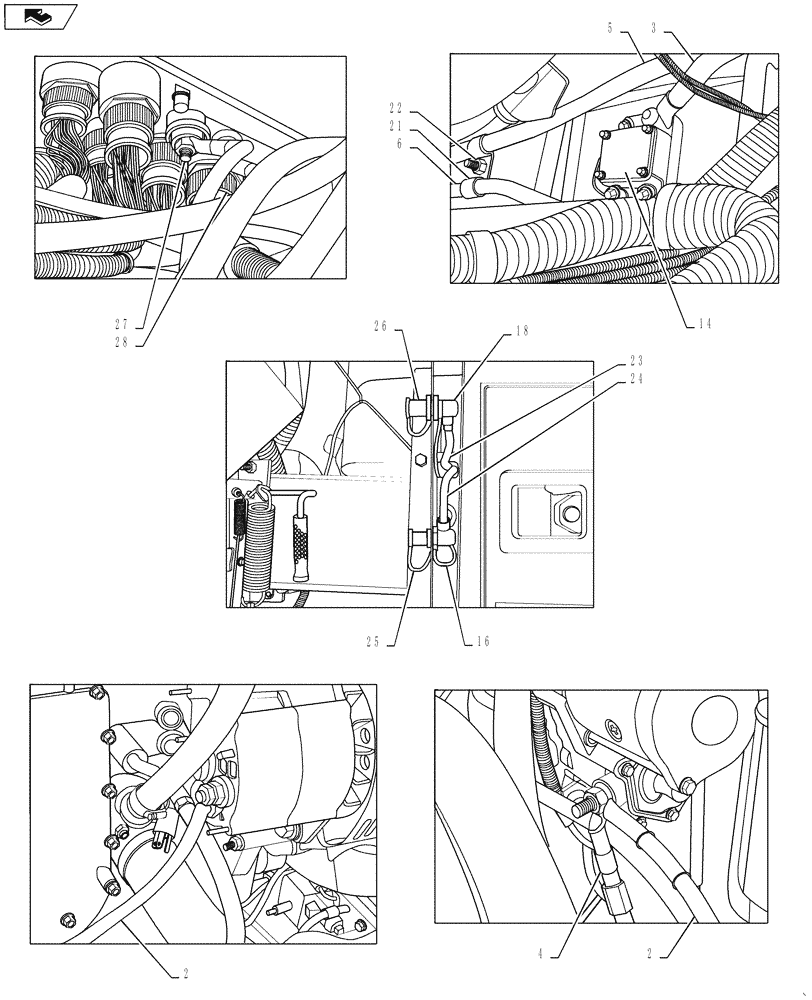

Запчасти Case IH 3230 (55.301.02[02]) - BATTERY GROUP W/CABLES (55) - ELECTRICAL SYSTEMS

1

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

Not Shown

2шт.

2

87676071

CABLE

1/0 Red, 750mm Long, Alternator To Starter

1шт.

3

87269287

CABLE

Positive Battery Terminal To Circuit Breaker, 508mm Long

1шт.

4

84203914

POS BATTERY CABLE

Positive Battery Terminal To Starter, 1375mm Long

1шт.

5

84127889

CABLE

Negative Battery Terminal To Cab Feed-Through, 3780mm Long

1шт.

6

87271426

CABLE

Circuit Breaker To Cab Feed-Through, 3740mm Long

1шт.

7

BN570007

STRAP

Black, 14-1/2" Long, Not Shown

4шт.

8

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

Not Shown

2шт.

9

86500689

NUT,M10 x 1.5, Cl 10

Not Shown

2шт.

10

86624181

WASHER,M6

Not Shown

2шт.

11

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

Not Shown

2шт.

12

84407295

BASE

M8, Stud, Not Shown

2шт.

13

BN50062

LOCK NUT,3/8"-16, Stainless Steel

Not Shown

1шт.

14

BN69860

CIRCUIT BREAKER

150A

1шт.

15

BN2290753

GROMMET

7/8" Hole, Not Shown

1шт.

16

342463A1

BOOT

Battery, Black

1шт.

17

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

Not Shown

1шт.

18

342119A1

BOOT

Battery, Red

5шт.

19

100037

LOCK NUT,M10 x 1.5, Cl 8

Not Shown

1шт.

20

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

Not Shown

2шт.

21

344067A1

PIPE CLAMP

double C/MTG

4шт.

22

87344227

SERRATED NUT

Serrated, M8 SPL DOR

4шт.

23

BN313955

POS BATTERY CABLE

Positive Battery Terminal To Auxiliary Post(Red), 2565mm Long

1шт.

24

84363170

NEG BATTERY CABLE

Frame Ground To Auxiliary Post(Black), 645mm Long, Not Shown

1шт.

25

A187583

STUD

Jump Start, Negative

1шт.

26

582785C91

TERMINAL CONNECTOR

Jump Start, Positive

1шт.

27

A187523

JUNCTION BLOCK

Junction, Feed Through

1шт.

28

311430A1

BLOCK

Junction, Feed Through

1шт.
