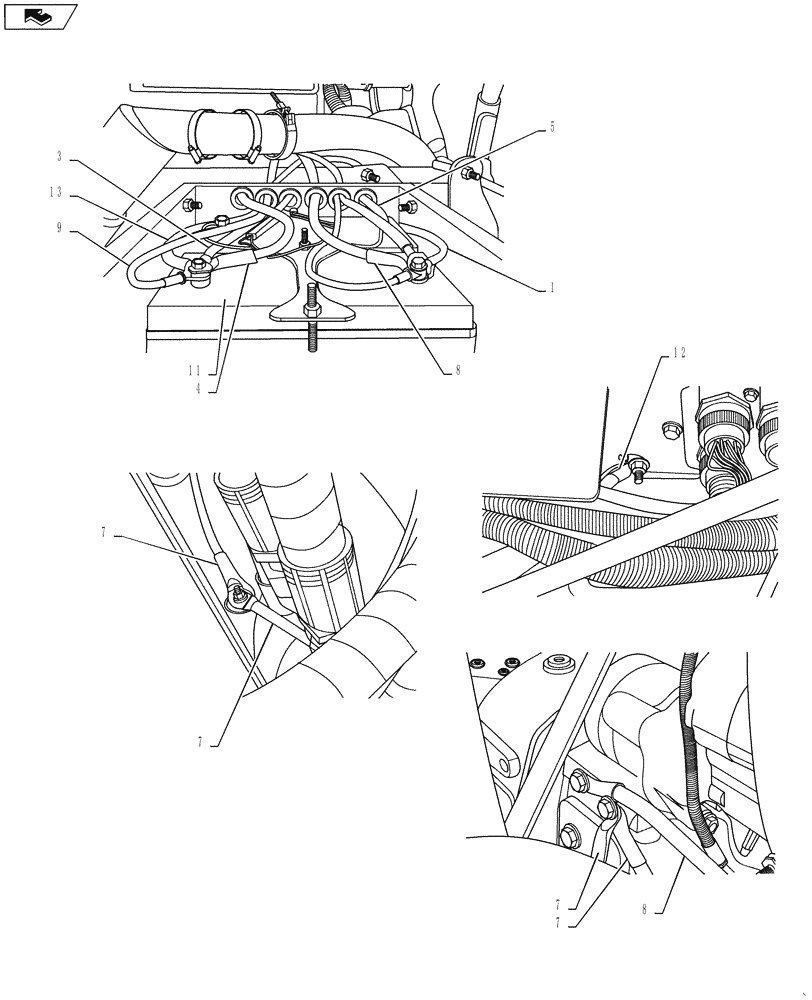

Запчасти Case IH 3230 (55.301.02[01]) - BATTERY GROUP W/CABLES (55) - ELECTRICAL SYSTEMS

1

BN320002

NEG BATTERY CABLE

Negative Battery Terminal To Negative Battery Terminal, 381mm Long

1шт.

2

87676071

CABLE

1/0 Red, 750mm Long, Alternator To Starter

1шт.

3

87269287

CABLE

Positive Battery Terminal To Circuit Breaker, 508mm Long

1шт.

4

84203914

POS BATTERY CABLE

Positive Battery Terminal To Starter, 1375mm Long

1шт.

5

84127889

CABLE

Negative Battery Terminal To Cab Feed-Through, 3780mm Long

1шт.

6

87271426

CABLE

Circuit Breaker To Cab Feed-Through, 3740mm Long

1шт.

7

87271233

CABLE

Engine Block To Frame / Engine Block To Starter, 600mm Long

2шт.

8

342803A1

ELECTRIC CABLE

55mm Black, 1270mm Long, Negative Battery Terminal To Engine Block

1шт.

9

BN313955

POS BATTERY CABLE

Positive Battery Terminal To Auxiliary Post(Red), 2565mm Long

1шт.

10

84363170

NEG BATTERY CABLE

Frame Ground To Auxiliary Post(Black), 645mm Long, Not Shown

1шт.

11

91734C1

WET BATTERY

12V, 950CCA, Stud

2шт.

12

BN307097

CABLE

Cab Ground To Frame Stud, 458mm Long

1шт.

13

BN320001

CABLE

Positive Battery Terminal To Positive Battery Terminal, 381mm Long

1шт.
