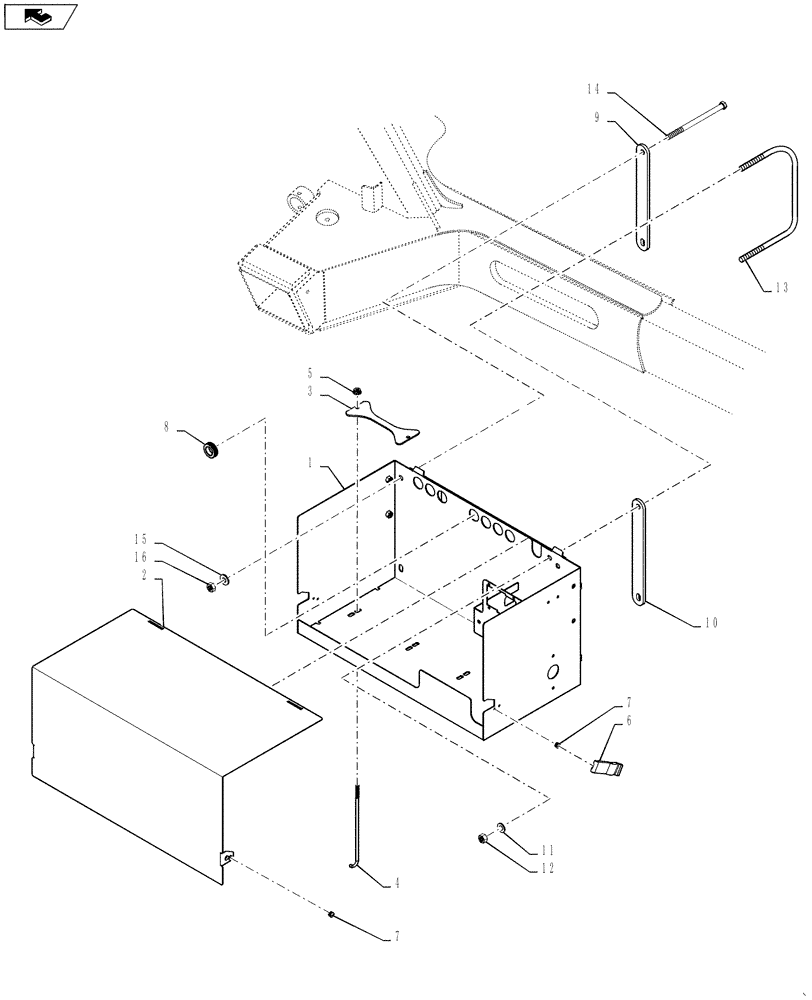

Запчасти Case IH 3230 (55.301.01[02]) - BATTERY BOX GROUP - ASN Y9T026054 (55) - ELECTRICAL SYSTEMS

1

84217995

BATTERY BOX

1шт.

2

84217998

COVER

BATTERY

1шт.

3

BN320331

BRACKET

BATTERY MOUNT

2шт.

4

87691876

ROD

BATTERY HOLD DOWN

4шт.

5

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

4шт.

6

BN307683

LATCH

SOFT, W/ CONCEAL KEEP

2шт.

7

87017053

RIVET,Pop, .146" x .425"

8шт.

8

BN2290753

GROMMET

7/8" HOLE

7шт.

9

87271465

MOUNTING PLATE

BATTERY BOX

1шт.

10

86986975

SPACER

BATTERY BOX

1шт.

11

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

17.5X30X4MM HTS DOR HDN

2шт.

12

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

2шт.

13

343924A1

U-BOLT

M16-2 X 150 X 256

1шт.

14

86980434

BOLT,Hex, M12 x 140mm, Cl 8.8

M12X140 CL8.8

2шт.

15

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5X28X4MM HTS DOR HDN

2шт.

16

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

2шт.
