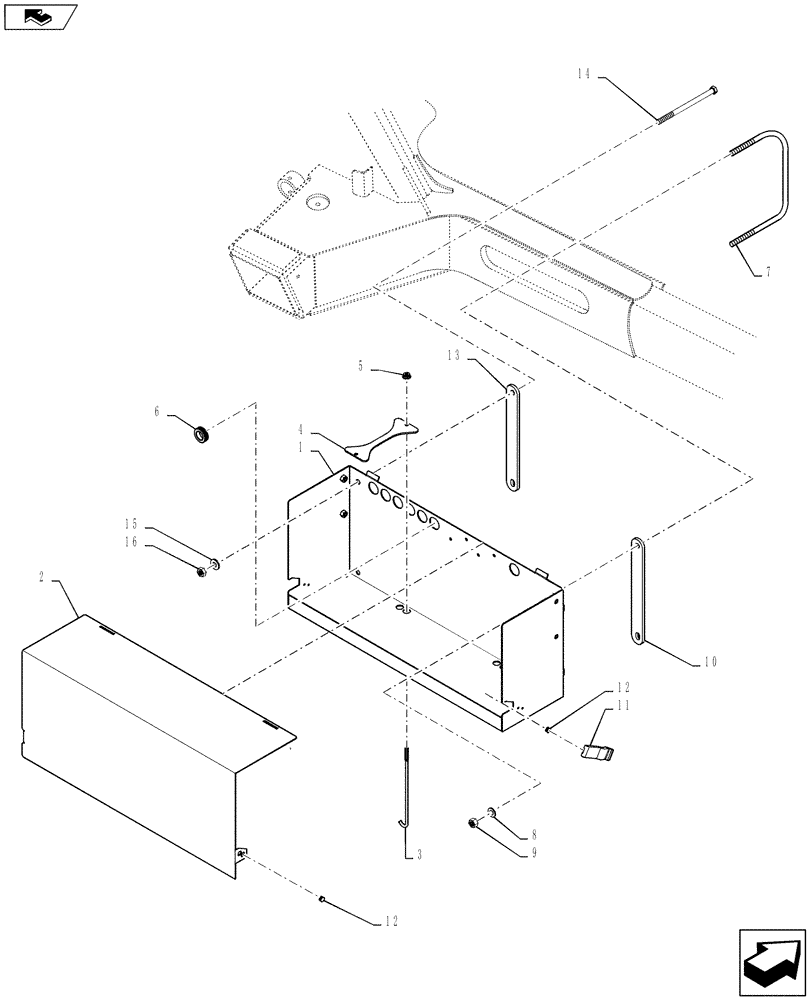

Запчасти Case IH 3230 (55.301.01[01]) - BATTERY BOX GROUP - BSN Y9T026055 (55) - ELECTRICAL SYSTEMS

1

87271466

BOX

Battery

1шт.

2

87271469

COVER

BATTERY BOX

1шт.

3

87691876

ROD

Battery Hold Down

4шт.

4

BN320331

BRACKET

Mount, Battery

2шт.

5

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

4шт.

6

BN2290753

GROMMET

2870 (7/8" Hole)

7шт.

7

343924A1

U-BOLT

M16-2 X 150 X 256

1шт.

8

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

17.5 x 30 x 4 mm, HDN, DOR

2шт.

9

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

2шт.

10

86986975

SPACER

1шт.

11

BN307683

LATCH

SOFT W/CONCEAL KEEP

2шт.

12

151-515

RIVET,Pop, .146" x .425"

2шт.

12

86980444

BOLT,Hex, M16 - 2 x 40mm, Cl 8.8, DOR

8шт.

13

87271465

MOUNTING PLATE

BATTERY BOX

1шт.

14

86980434

BOLT,Hex, M12 x 140mm, Cl 8.8

M12X140 CL8.8

2шт.

15

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5X28X4MM HTS DOR HDN

2шт.

16

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

2шт.
