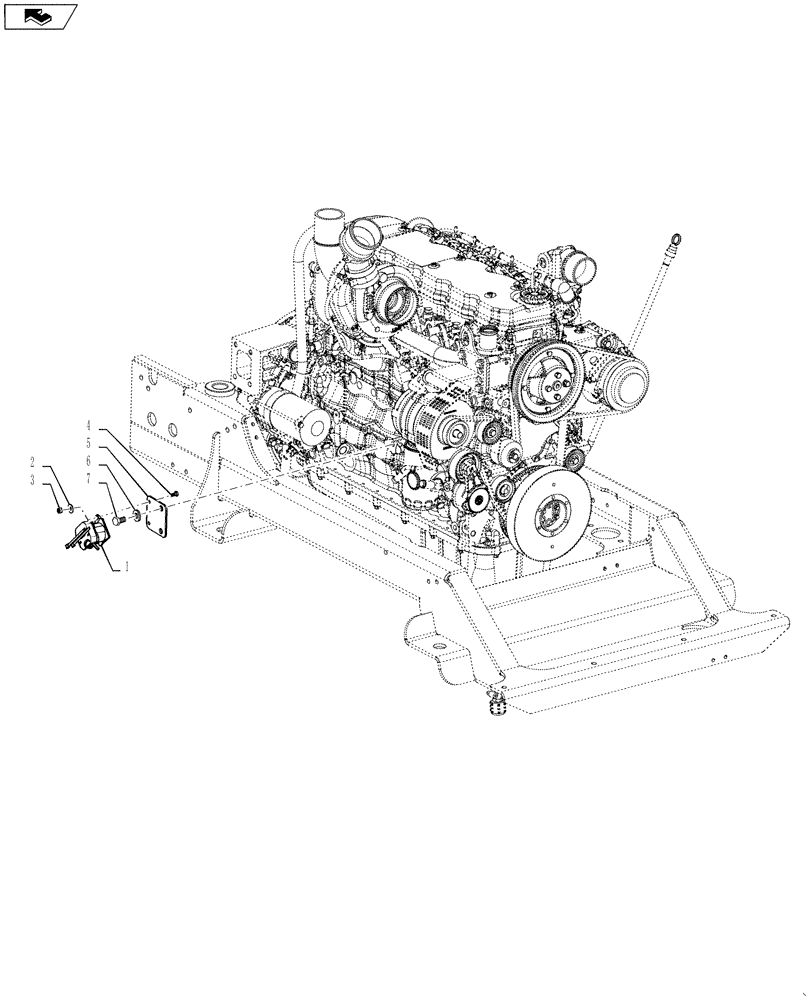

Запчасти Case IH 3230 (55.201.01) - INTERMEDATE START RELAY, GROUP (55) - ELECTRICAL SYSTEMS

1

178149A1

SOLENOID SWITCH

Kit, With Barrier, Starter Relay

1шт.

2

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

2шт.

3

353308

NUT,M6 x 1.0, Cl 8

2шт.

4

86980359

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

5

87579954

MOUNT

Starter Relay

1шт.

6

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, HDN, DOR

2шт.

7

86980418

BOLT,Hex, M12 - 1.75 x 20mm, Cl 8.8, DOR

M12 1.75 X 20, HH, 8.8, DOR

2шт.
